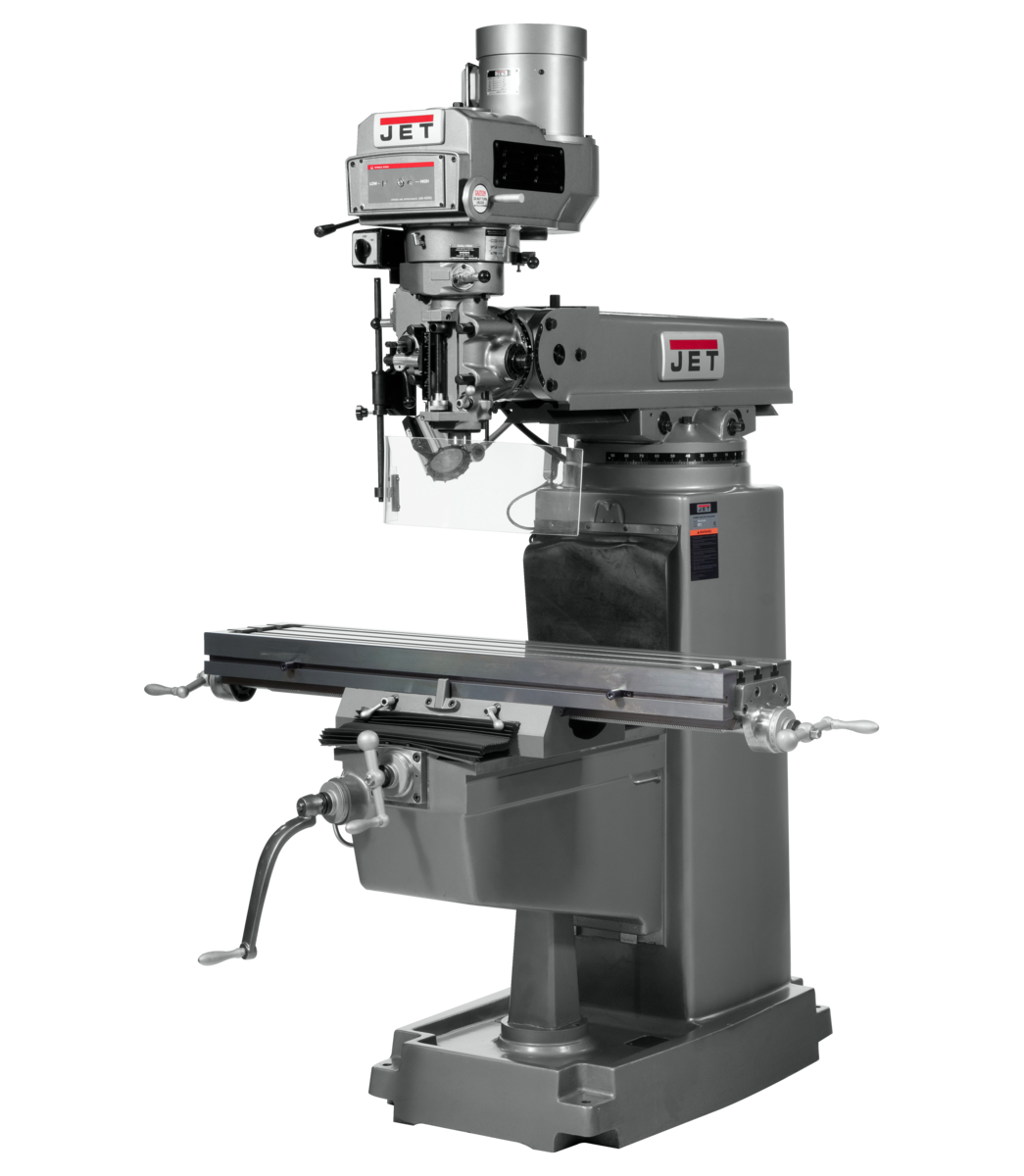

JTM-1050VS2 Mill With Newall DP700 3-Axis (Knee) DRO and X-Axis Powerfeed

JTM-1050VS2 Mill With Newall DP700 3-Axis (Knee) DRO and X-Axis Powerfeed

Product SKU: 691236

MSRP Price: $19499.0

$19,499.00 USD
$19,499.00 USD $19,499.00 USD
Sale Sold out

Free Shipping Available!

The JET JTM-1050VS2 features Certified Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

Stock Number 691236
Collet Capacity 1/8 - 7/8
Distance Spindle to Column (Max.) (In.) 26
Max Distance Spindle to Table (In.) 19
Model Number JTM-1050VS2
Motor (HP) 3 HP, 230/460V, 3Ph
Number of Axis 3 (Knee)
Overall Dimensions (L x W x H) (In.) 96 x 78 x 88
Powerfeed X-Axis
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 70 - 3,800
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) Variable Speed R8
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 15-1/4
Table Longitudinal Travel (In.) 35
Table Longitudinal Travel With Powerfeed (In.) 29-3/4
Table Size (L x W) (In.) 10 x 50
Travel of Knee (In.) 14-1/4
Travel of Ram (In.) 20-1/2
Weight (Lbs.) 2900
Work Table Weight Capacity (Lbs.) 720
View full details

Jet - JTM-1050VS2 Mill With Newall DP700 3-Axis (Knee) DRO and X-Axis Powerfeed

Product Details

Features

- Adjustable gibs throughout
- Chrome lead screws on X and Y axis
- Chrome-plated motor shaft with bearing support at end
- Hardened and ground square vertical knee ways and cross ways
- Heavy duty motor drive
- Internal coolant tank built into base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
- One shot lubrication system
- Spindle head is internally cooled
- Tolerance test sheet included

Shipping Details

Shipping Type: LTL-Dock

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
