Jet

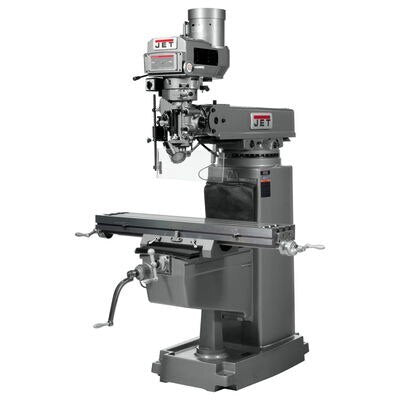

JTM-1050VS2 Mill With X-Axis Powerfeed
JTM-1050VS2 Mill With X-Axis Powerfeed
Product SKU: 690120
MSRP Price: $17159
Free Shipping Available!
Couldn't load pickup availability
The JET JTM-1050VS2 features Certified Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.
| Stock Number | 690120 |
|---|---|
| Collet Capacity | 1/8 - 7/8 |
| Distance Spindle to Column (Max.) (In.) | 26 |
| Max Distance Spindle to Table (In.) | 19 |
| Model Number | JTM-1050VS2 |
| Motor (HP) | 3 HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 96 x 78 x 88 |
| Powerfeed | X-Axis |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 70 - 3,800 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed R8 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/4 |
| Table Longitudinal Travel (In.) | 35 |
| Table Longitudinal Travel With Powerfeed (In.) | 29-3/4 |
| Table Size (L x W) (In.) | 10 x 50 |
| Travel of Knee (In.) | 14-1/4 |
| Travel of Ram (In.) | 20-1/2 |
| Weight (Lbs.) | 2900 |
| Work Table Weight Capacity (Lbs.) | 720 |
Jet - JTM-1050VS2 Mill With X-Axis Powerfeed
Product Details
Features
-
- Chrome lead screws on X and Y axis
- Chrome-plated motor shaft with bearing support at end
- Hardened and ground square vertical knee ways and cross ways
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL - Doc Del Only
Warranty & Legal
Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
