Jet

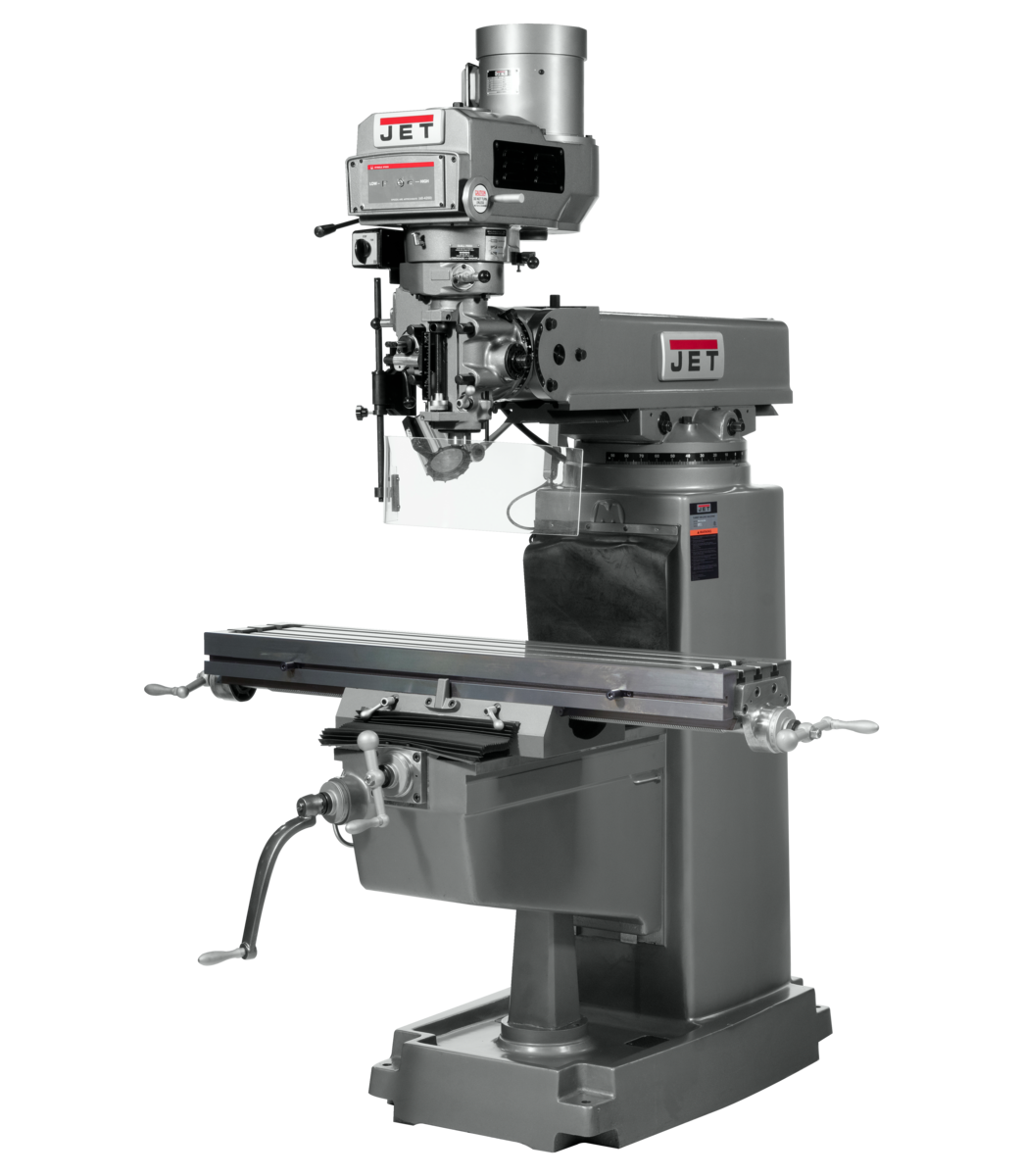

JTM-1050VS2 Variable Speed Vertical Milling Machine 230/460V 3Ph

JTM-1050VS2 Variable Speed Vertical Milling Machine 230/460V 3Ph

Product SKU: 691050

MSRP Price: $19184.29

Regular price $15,559.00 USD
Regular price $15,559.00 USD Sale price $15,559.00 USD
Sale Sold out

Free Shipping Available!

The JET JTM-1050VS2 features our proprietary Meehanite® column castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

Stock Number 691050
Collet Capacity 1/8 - 5/8
Column Width (In.) 13
Distance Spindle to Column (Max.) (In.) 27
Model Number JTM-1050VS2
Motor (HP) 3 HP,230/460V ,3Ph
Overall Dimensions (L x W x H) (In.) 63 x 63 x 89
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 / .003 / .008
Range of Spindle Speeds (RPM) 60-500/500-4200
Saddle Width (In.) 20
Spindle Taper (In. x TPI) R8
Spindle Travel (In.) 5
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 14-3/4
Table Longitudinal Travel (In.) 34-1/4
Table Size (L x W) (In.) 10 x 50
Travel of Knee (In.) 16-1/8
Weight (Lbs.) 2466
Work Table Weight Capacity (Lbs.) 840
View full details

Jet - JTM-1050VS2 Variable Speed Vertical Milling Machine 230/460V 3Ph

Product Details

Features

- Chrome lead screws on X and Y axis
- Hardened and ground table
- Hardened and ground table capable of supporting 840 pounds
- Internal coolant tank built into base for use with optional coolant system (coolant pump not included)
- JET's proprietary certified Meehanite® column castings
- One shot lubrication system
- Precision bored and honed milling head
- Three stage power downfeed with automatic stop
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
