Jet

JTM-1254RVS 3-Axis with MILPWR CNC & Air Power Drawbar

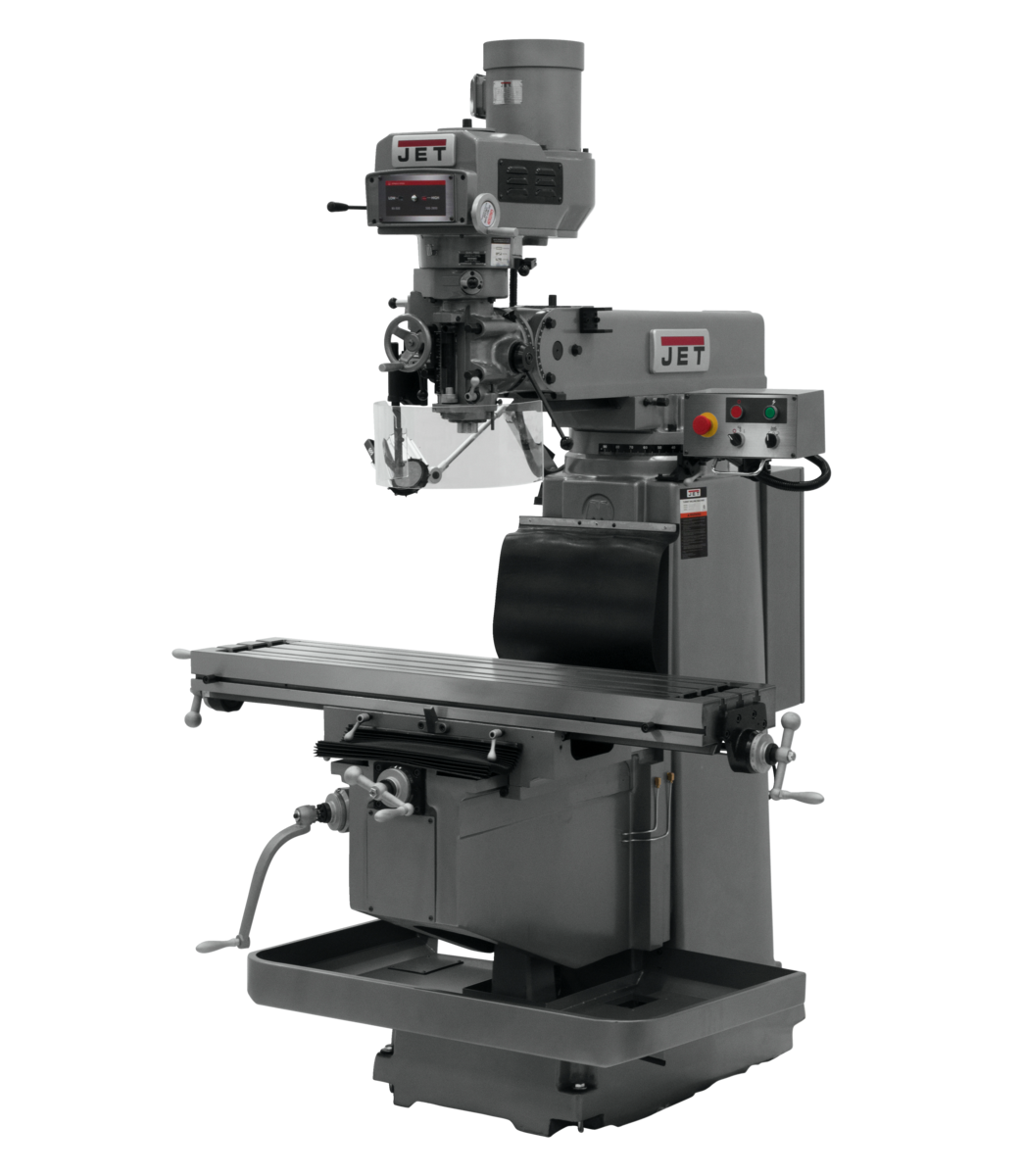

JTM-1254RVS 3-Axis with MILPWR CNC & Air Power Drawbar

Product SKU: 691945

MSRP Price: $49999

Regular price $49,999.00 USD
Regular price $49,999.00 USD Sale price $49,999.00 USD
Sale Sold out

Free Shipping Available!

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Stock Number 691945
Column Width (In.) 14-1/4
Distance Spindle to Column (Max.) (In.) 27-3/4
Max Distance Spindle to Table (In.) 23
Model Number JTM-1254RVS CNC G2
Motor (HP) 5HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.) 26.75 x 16.625 x 58.625
Power Draw Bar Pneumatic
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 4-1/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 80 - 3,800
Saddle Width (In.) 25-5/8
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) CNC
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 15-1/3
Table Longitudinal Travel (In.) 33-7/8
Table Size (L x W) (In.) 12 x 54
Travel of Knee (In.) 19-1/4
Travel of Ram (In.) 25
Weight (Lbs.) 3696
Work Table Weight Capacity (Lbs.) 925
View full details

Jet - JTM-1254RVS 3-Axis with MILPWR CNC & Air Power Drawbar

Product Details

Features

- 12.1" High resolution display (1024 x 768) with 3D graphics
- 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
- Adjustable gibs throughout
- Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
- Available offline software
- Estimated run time feature
- Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
- Three Precision ground t-slots
- Two 115V outlets on electrical box for Powerfeeds only
- USB + Ethernet compatible

Shipping Details

Shipping Type: Flatbed

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
