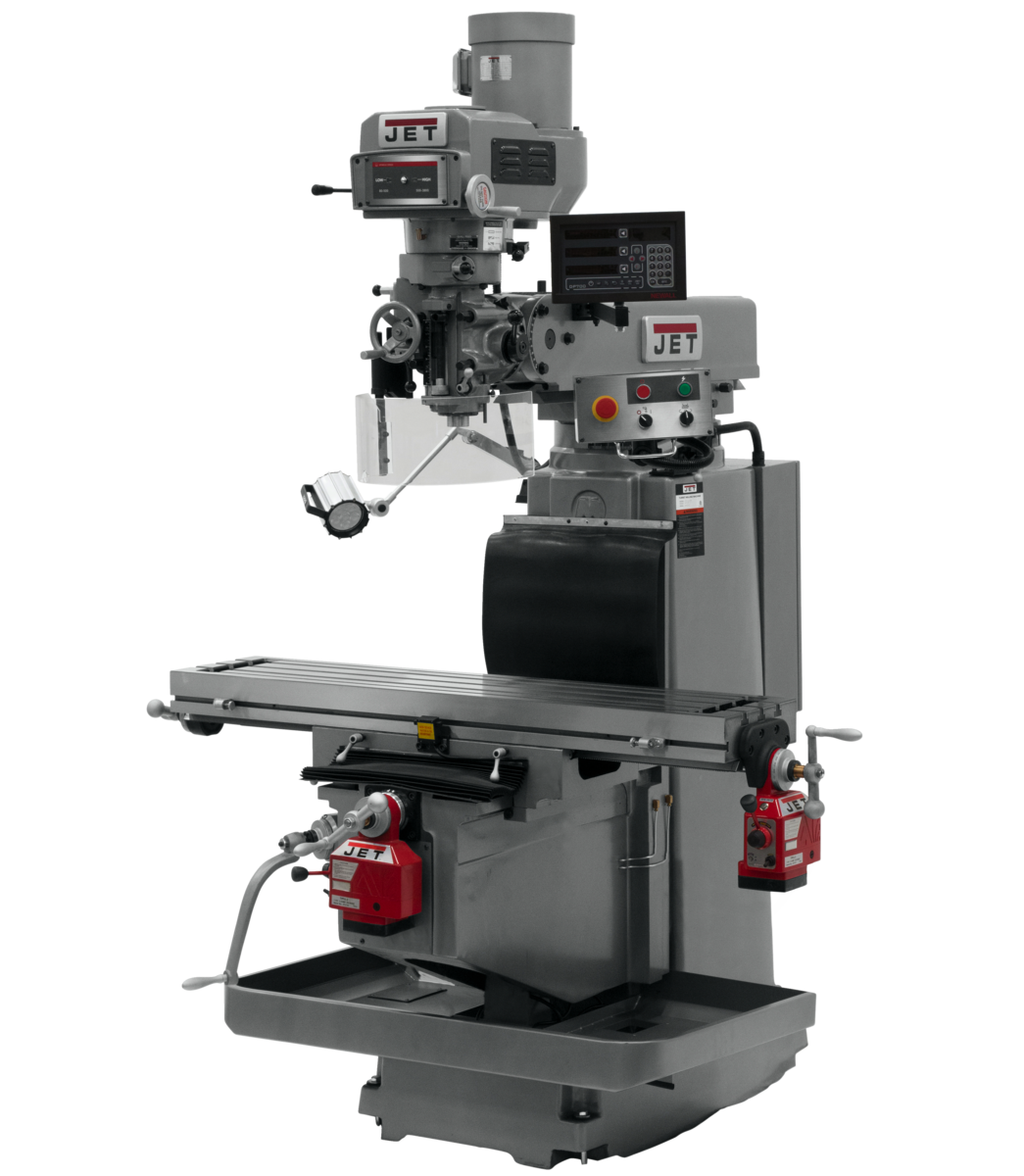

JTM-1254RVS With Newall DP700 3X (K) DRO, X & Y Powerfeeds
JTM-1254RVS With Newall DP700 3X (K) DRO, X & Y Powerfeeds
Product SKU: 698134
Couldn't load pickup availability
The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication every 180 minutes and quick nut spindle feed along with the Certified Meehanite® castings, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.
| Stock Number | 698134 |
|---|---|
| Collet Capacity | 1/8 - 1 |
| Column Width (In.) | 14-1/4 |
| Distance Spindle to Column (Max.) (In.) | 27-3/4 |
| Max Distance Spindle to Table (In.) | 23 |
| Model Number | JTM-1254RVS |
| Motor (HP) | 5HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 92-1/8 x 79-7/8 x 104-1/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 4-1/8 |
| Quill Down Feed Rates (IPR) | .0015–.003–.008 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Saddle Width (In.) | 25-5/8 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed R8 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/3 |
| Table Longitudinal Travel (In.) | 33-7/8 |
| Table Longitudinal Travel With Powerfeed (In.) | 28-1/4 |
| Table Size (L x W) (In.) | 12 x 54 |
| Travel of Knee (In.) | 19-1/4 |
| Travel of Ram (In.) | 25 |
| Weight (Lbs.) | 3969 |
| Work Table Weight Capacity (Lbs.) | 925 |
Product Specifications
Jet - JTM-1254RVS With Newall DP700 3X (K) DRO, X & Y Powerfeeds
