Jet

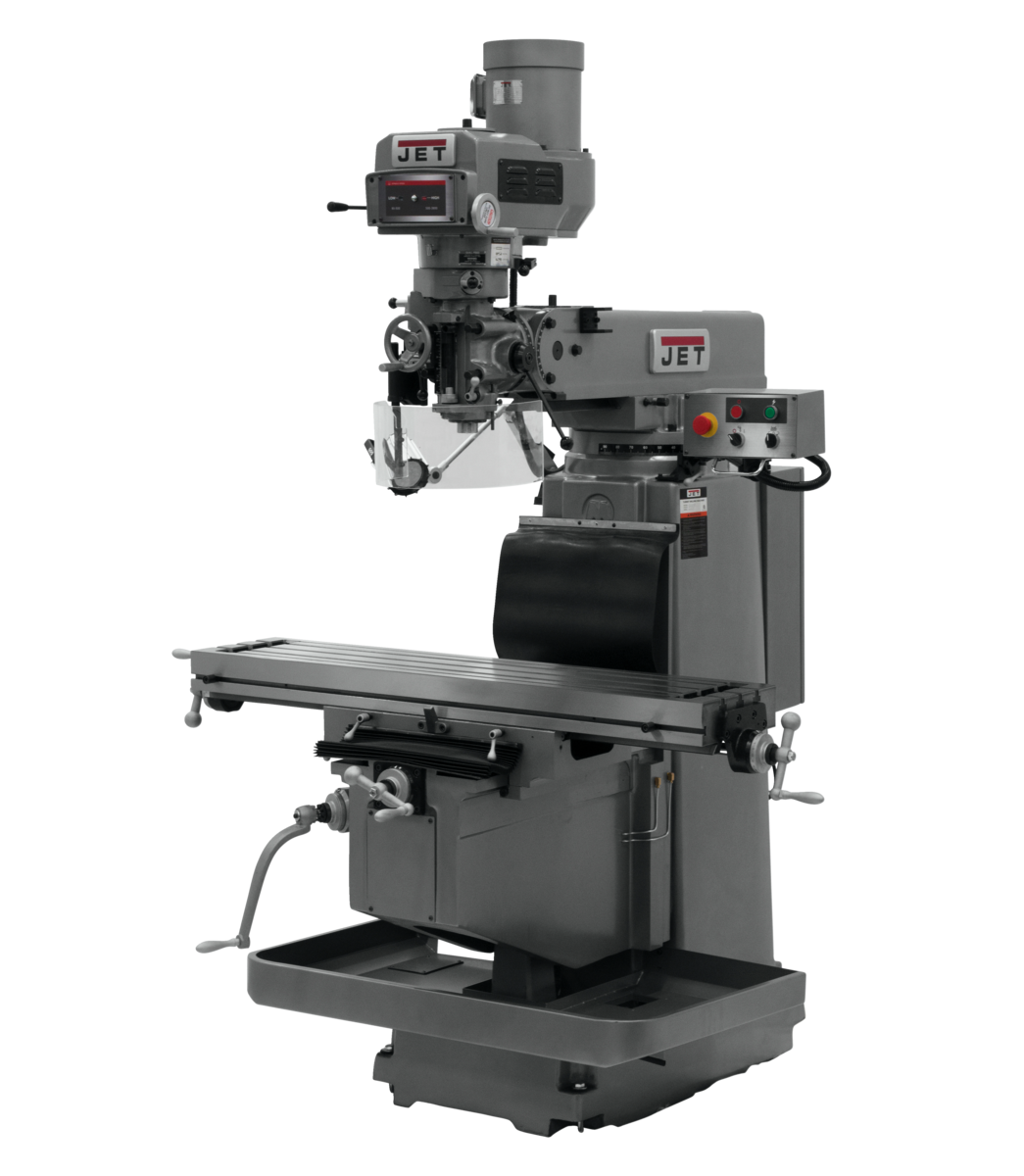

JTM-1254RVS With Newall DP700 DRO X,Y&Z Powerfeeds

JTM-1254RVS With Newall DP700 DRO X,Y&Z Powerfeeds

Product SKU: 698130

MSRP Price: $26299

$26,299.00 USD
$26,299.00 USD $26,299.00 USD
Sale Sold out

Free Shipping Available!

We combined durability, strength, and precision engineering to create 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, JET mills provide ongoing automatic lubrication and quick nut spindle feed, along with the JET exclusive certified Meehanite castings that provide the end-user with an easier solution to leveling the machine without raising it off the floor. These heavy-duty mills are offered in both R-8 and NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty. CSA/CUS Certified.

Stock Number 698130
Collet Capacity 1/8 - 1
Column Width (In.) 14-1/4
Distance Spindle to Column (Max.) (In.) 27-3/4
Max Distance Spindle to Table (In.) 23
Model Number JTM-1254RVS
Motor (HP) 5HP, 230/460V, 3Ph
Number of Axis 2
Overall Dimensions (L x W x H) (In.) 92-1/8 x 79-7/8 x 104-1/4
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 4-1/8
Quill Down Feed Rates (IPR) .0015–.003–.008
Range of Spindle Speeds (RPM) 80 - 3,800
Saddle Width (In.) 25-5/8
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) Variable Speed R8
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 15-1/3
Table Longitudinal Travel (In.) 33-7/8
Table Longitudinal Travel With Powerfeed (In.) 28-1/4
Table Size (L x W) (In.) 12 x 54
Travel of Knee (In.) 19-1/4
Travel of Ram (In.) 25
Weight (Lbs.) 3969
Work Table Weight Capacity (Lbs.) 925
View full details

Jet - JTM-1254RVS With Newall DP700 DRO X,Y&Z Powerfeeds

Product Details

Features

- Adjustable gibs throughout
- Dual locks on all moveable surfaces
- Precision bored and honed milling head
- Precision hardened and ground ways and table
- Spindle Brake for rapid stopping of the spindle
- Three Precision ground t-slots
- Three-stage power downfeed with automatic stop
- Two 115V outlets on electrical box for Powerfeeds only
-
-

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
