Jet

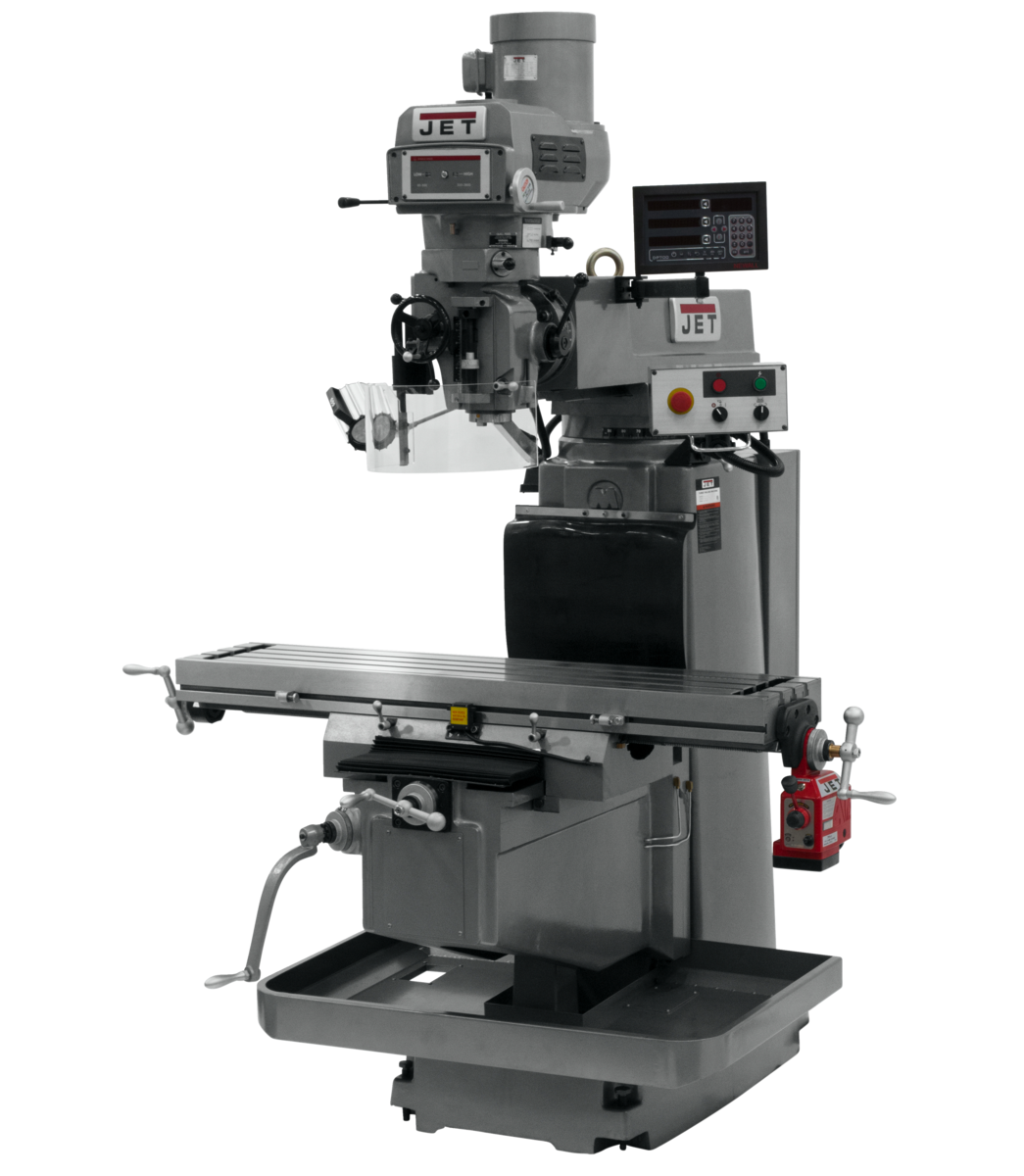

JTM-1254VS With Newall DP700 DRO & X Powerfeed

JTM-1254VS With Newall DP700 DRO & X Powerfeed

Product SKU: 698067

MSRP Price: $31650.0

Regular price $23,799.00 USD
Regular price $23,799.00 USD Sale price $23,799.00 USD
Sale Sold out

Free Shipping Available!

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication every 180 minutes and quick nut spindle feed along with the Certified Meehanite® castings, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.

Stock Number 698067
Collet Capacity 1/8 - 1
Column Width (In.) 14-1/4
Distance Spindle to Column (Max.) (In.) 27-3/4
Max Distance Spindle to Table (In.) 23
Model Number JTM-1254VS
Motor (HP) 5HP, 230/460V, 3Ph
Number of Axis 2
Overall Dimensions (L x W x H) (In.) 92-1/8 x 79-7/8 x 104-1/4
Powerfeed X-Axis
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 4-1/8
Quill Down Feed Rates (IPR) .0015–.003–.008
Range of Spindle Speeds (RPM) 80 - 3,800
Saddle Width (In.) 25-5/8
Spindle Taper (In. x TPI) NT40
Spindle Travel (In.) 5
Style (Type) Variable Speed NT40
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 15-1/3
Table Longitudinal Travel (In.) 33-7/8
Table Longitudinal Travel With Powerfeed (In.) 28-1/4
Table Size (L x W) (In.) 12 x 54
Travel of Knee (In.) 19-1/4
Travel of Ram (In.) 25
Weight (Lbs.) 3969
Work Table Weight Capacity (Lbs.) 925
View full details

Jet - JTM-1254VS With Newall DP700 DRO & X Powerfeed

Product Details

Features

- Adjustable gibs throughout
- Dual locks on all moveable surfaces
- Heavy-duty spindle brake
- Precision bored and honed milling head
- Precision hardened and ground ways and table
- Spindle Brake for rapid stopping of the spindle
- Three Precision ground t-slots
- Three-stage power downfeed with automatic stop
- Two 115V outlets on electrical box for Powerfeeds only
-

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
