Jet

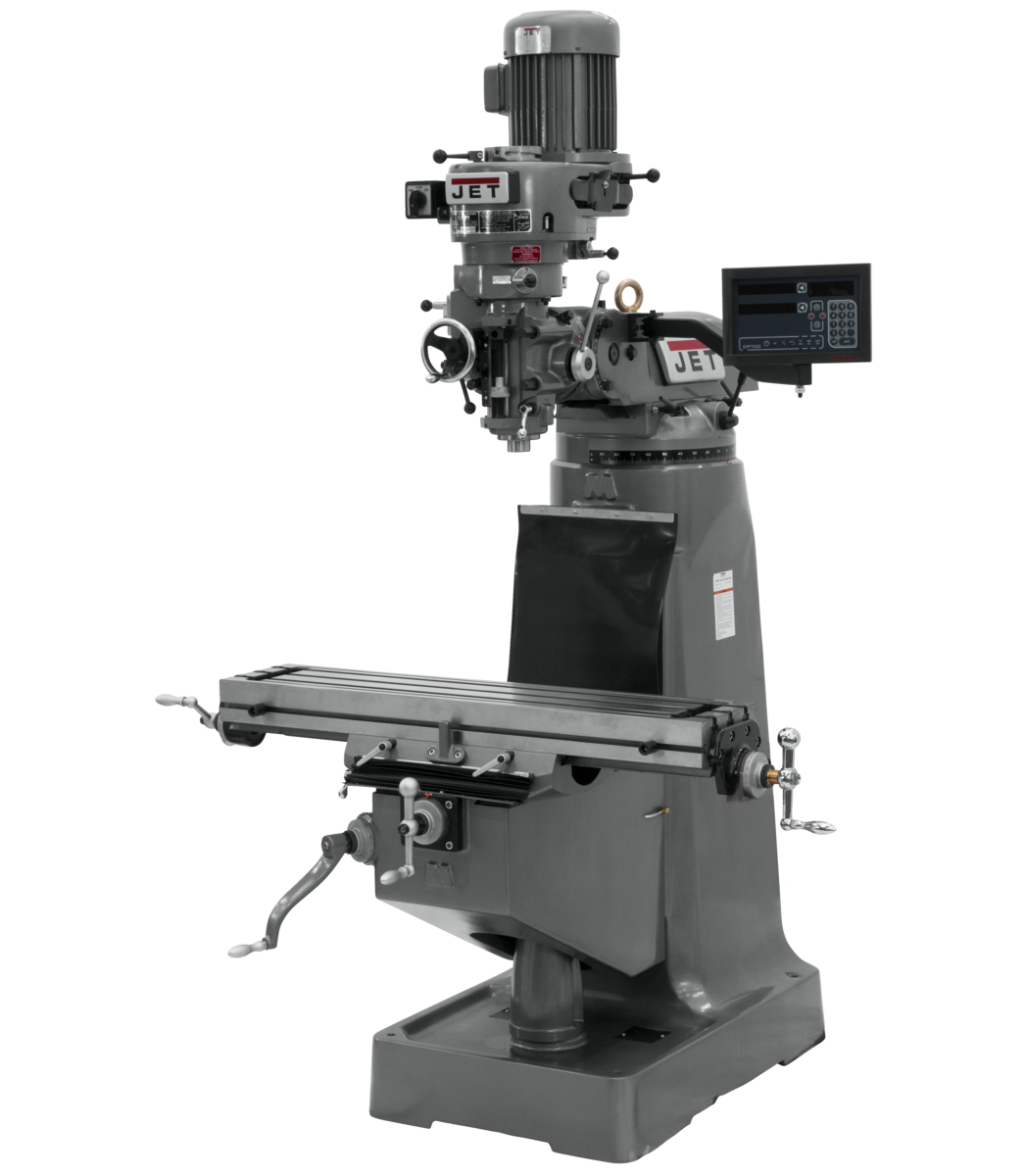

JTM-2 Mill With 3-Axis Newall DP700 DRO (Knee)

JTM-2 Mill With 3-Axis Newall DP700 DRO (Knee)

Product SKU: 691182

MSRP Price: $19270.0

Regular price $15,599.00 USD
Regular price $15,599.00 USD Sale price $15,599.00 USD
Sale Sold out

Free Shipping Available!

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

Stock Number 691182
Collet Capacity 1/8 - 7/8
Distance Spindle to Column (Max.) (In.) 19
Max Distance Spindle to Table (In.) 17-1/2
Model Number JTM-2
Motor (HP) 2 HP, 115/230V, 1Ph
Number of Axis 3 (Knee)
Number of Spindle Speeds 8
Overall Dimensions (L x W x H) (In.) 57 x 64 x 82
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 80 - 2,720
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) Step Pulley R8
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 12-1/2
Table Longitudinal Travel (In.) 23-7/8
Table Longitudinal Travel With Powerfeed (In.) 20-2/7
Table Size (L x W) (In.) 9 x 42
Travel of Knee (In.) 14-1/2
Travel of Ram (In.) 13-3/8
Weight (Lbs.) 2200
Work Table Weight Capacity (Lbs.) 550
View full details

Jet - JTM-2 Mill With 3-Axis Newall DP700 DRO (Knee)

Product Details

Features

- Certified Meehanite® castings
- Heavy duty splined motor drive
- Internal coolant tank built into base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
- One shot lubrication system
- Precision bored and honed milling head
- Precision hardened and ground ways
- Spindle head is internally cooled
- Three stage power downfeed with automatic stop
- Tolerance test sheet included

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
