Jet

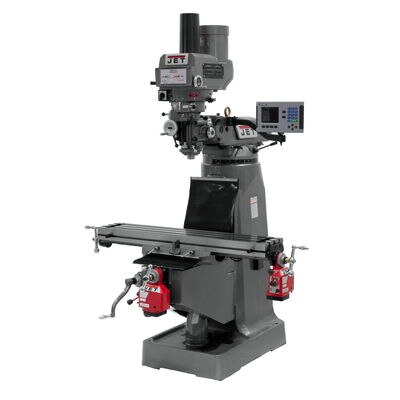

JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Quill) With X and Y-Axis Powerfeeds and Power Draw Bar

JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Quill) With X and Y-Axis Powerfeeds and Power Draw Bar

Product SKU: 690139

MSRP Price: $25178.57

Regular price $20,369.00 USD
Regular price $20,369.00 USD Sale price $20,369.00 USD
Sale Sold out

Free Shipping Available!

Constructed using the Certified Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.

Stock Number 690139
Collet Capacity 1/8 - 7/8
Distance Spindle to Column (Max.) (In.) 19
Max Distance Spindle to Table (In.) 17-1/2
Model Number JTM-4VS
Motor (HP) 3 HP, 230/460V, 3Ph
Number of Axis 3 (Quill)
Overall Dimensions (L x W x H) (In.) 66 x 63 x 85
Power Draw Bar Pneumatic
Powerfeed X and Y-Axis
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 60 - 4,200
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) Variable Speed R8
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 12
Table Longitudinal Travel (In.) 34
Table Longitudinal Travel With Powerfeed (In.) 28-3/4
Table Size (L x W) (In.) 9 x 49
Travel of Knee (In.) 14-1/2
Travel of Ram (In.) 13-3/8
Weight (Lbs.) 2420
Work Table Weight Capacity (Lbs.) 660
View full details

Jet - JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Quill) With X and Y-Axis Powerfeeds and Power Draw Bar

Product Details

Features

- Adjustable gibs throughout
- Heavy duty splined motor drive
- Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
- One shot lubrication system
- Precision hardened and ground ways and table
- Spindle head is internally cooled
- Tolerance test sheet included
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
