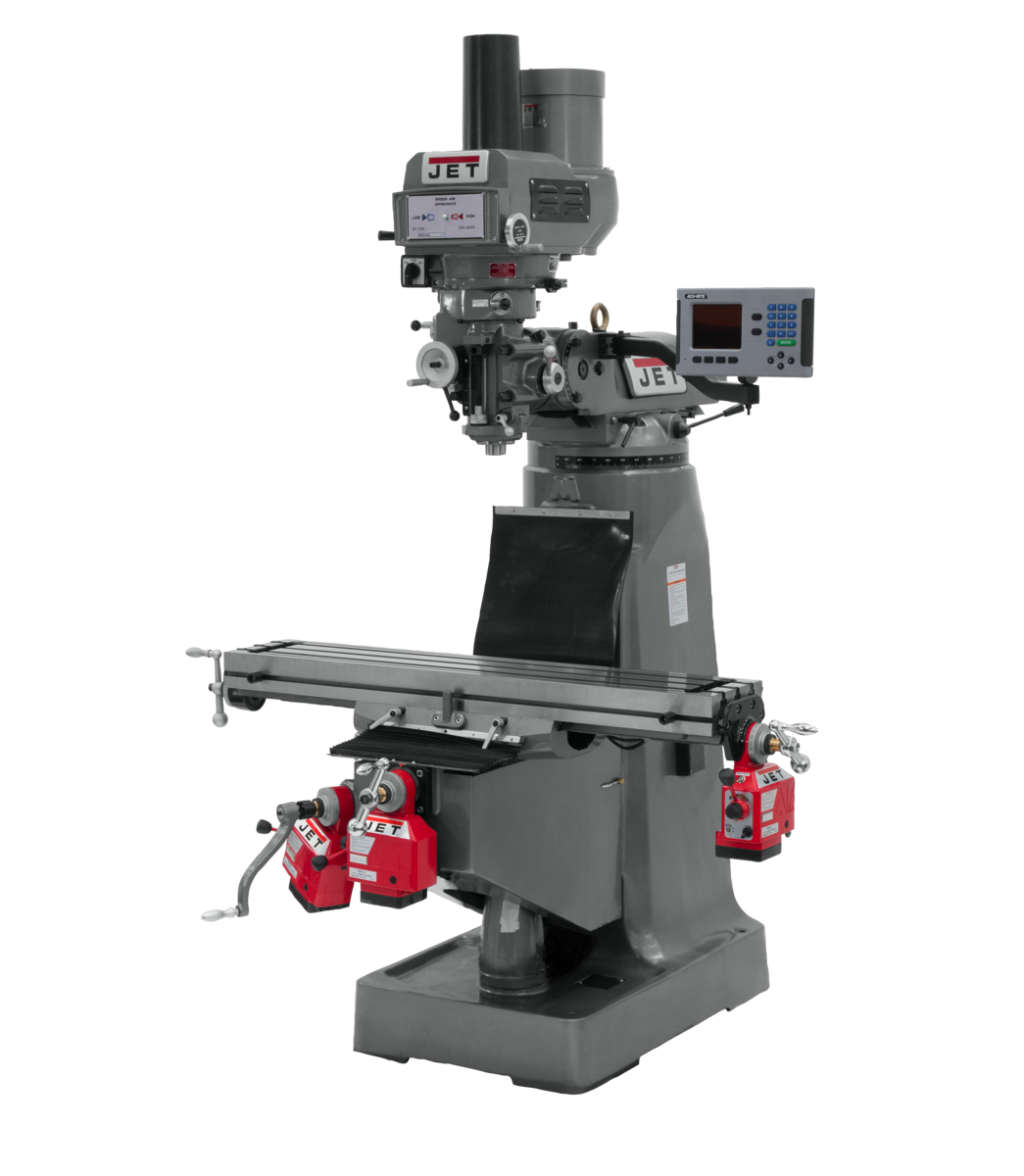

JTM-4VS Mill With 3-Axis ACU-RITE 303 DRO (Knee) With X, Y and Z-Axis Powerfeeds and Power Draw Bar

Name: JTM-4VS Mill With 3-Axis ACU-RITE 303 DRO (Knee) With X, Y and Z-Axis Powerfeeds and Power Draw Bar
Brand: Jet
SKU: 690430
Price: 21879.0 USD
Availability: InStock

Product SKU: 690430

MSRP Price: $26995.71

$21,879.00 USD

~~$21,879.00 USD~~ $21,879.00 USD

Sale Sold out

Free Shipping Available!

Product variants

Quantity

Constructed using the Certified Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading Two Year full service and parts Warranty.

Stock Number	690430
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (Max.) (In.)	19
Max Distance Spindle to Table (In.)	17-1/2
Model Number	JTM-4VS
Motor (HP)	3 HP, 230/460V, 3Ph
Number of Axis	3 (Knee)
Overall Dimensions (L x W x H) (In.)	66 x 63 x 85
Power Draw Bar	Pneumatic
Powerfeed	X, Y and Z-Axis
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	60 - 4,200
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	Variable Speed R8
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	12
Table Longitudinal Travel (In.)	34
Table Longitudinal Travel With Powerfeed (In.)	28-3/4
Table Size (L x W) (In.)	9 x 49
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Weight (Lbs.)	2420
Work Table Weight Capacity (Lbs.)	660

View full details

Jet - JTM-4VS Mill With 3-Axis ACU-RITE 303 DRO (Knee) With X, Y and Z-Axis Powerfeeds and Power Draw Bar

Product Details

Features

- Adjustable gibs throughout
- Heavy-duty spindle brake
- Heavy-duty splined motor drive
- Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
- One shot lubrication system
- Precision hardened and ground ways and table
- Spindle head is internally cooled
- Tolerance test sheet included
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
