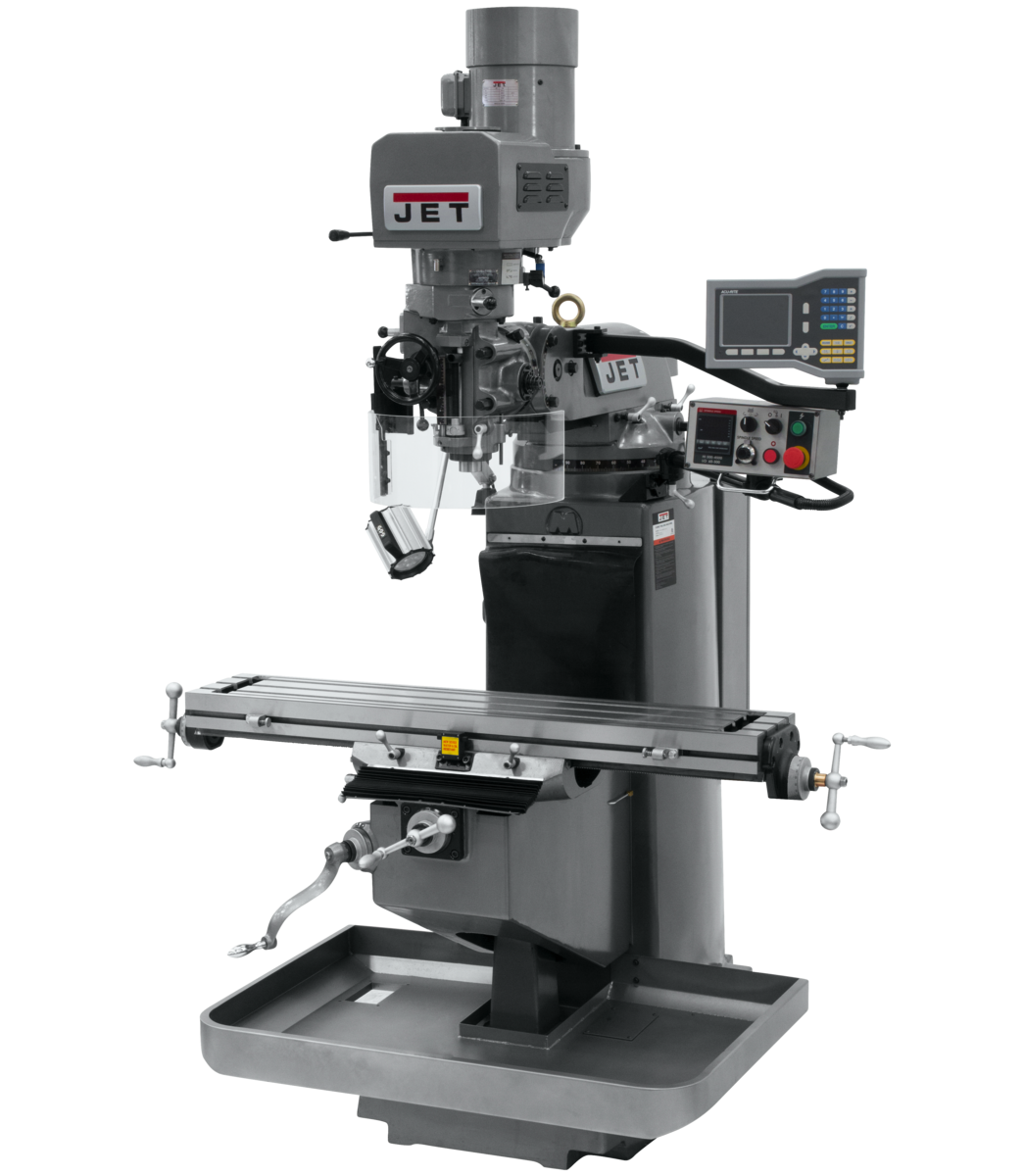

JTM-949EVS/230 Electronic Variable Speed Vertical Milling Machine 230V 3Ph

Name: JTM-949EVS/230 Electronic Variable Speed Vertical Milling Machine 230V 3Ph
Brand: Jet
SKU: 691500
Price: 16757.99 USD
Availability: InStock

Product SKU: 691500

MSRP Price: $16757.99

$16,757.99 USD

~~$16,757.99 USD~~ $16,757.99 USD

Sale Sold out

Free Shipping Available!

Product variants

Quantity

Constructed using the Certified Meehanite® casting process, The JTM-949EVS, 9" x 49" Electronic Variable Speed Milling Machines provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design. These new Mills have features you've come to expect and is backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.

Stock Number	691500
Collet Capacity	1/8 - 7/8
Column Width (In.)	18
Distance Spindle to Column (Max.) (In.)	18-1/8
Inverter Type	Delta, B
Max Distance Spindle to Table (In.)	20-3/4
Model Number	JTM-949EVS/230
Motor (HP)	3HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	66 x 63 x 86
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	60 - 4,500
Saddle Width (In.)	11-1/2
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	EVS
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	12-5/8
Table Longitudinal Travel (In.)	36
Table Longitudinal Travel With Powerfeed (In.)	30-3/4
Table Size (L x W) (In.)	9 x 49
Travel of Knee (In.)	15-3/4
Travel of Ram (In.)	15-1/4
Weight (Lbs.)	2420
Work Table Weight Capacity (Lbs.)	720

View full details

Jet - JTM-949EVS/230 Electronic Variable Speed Vertical Milling Machine 230V 3Ph

Product Details

Features

- Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Dual locks on all moveable surfaces
- Spindle head is internally cooled extending bearing, belt and motor life
- Swing away control box houses an e-stop and puts all controls at the operators fingertips
- Swing away safety shield
- Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
