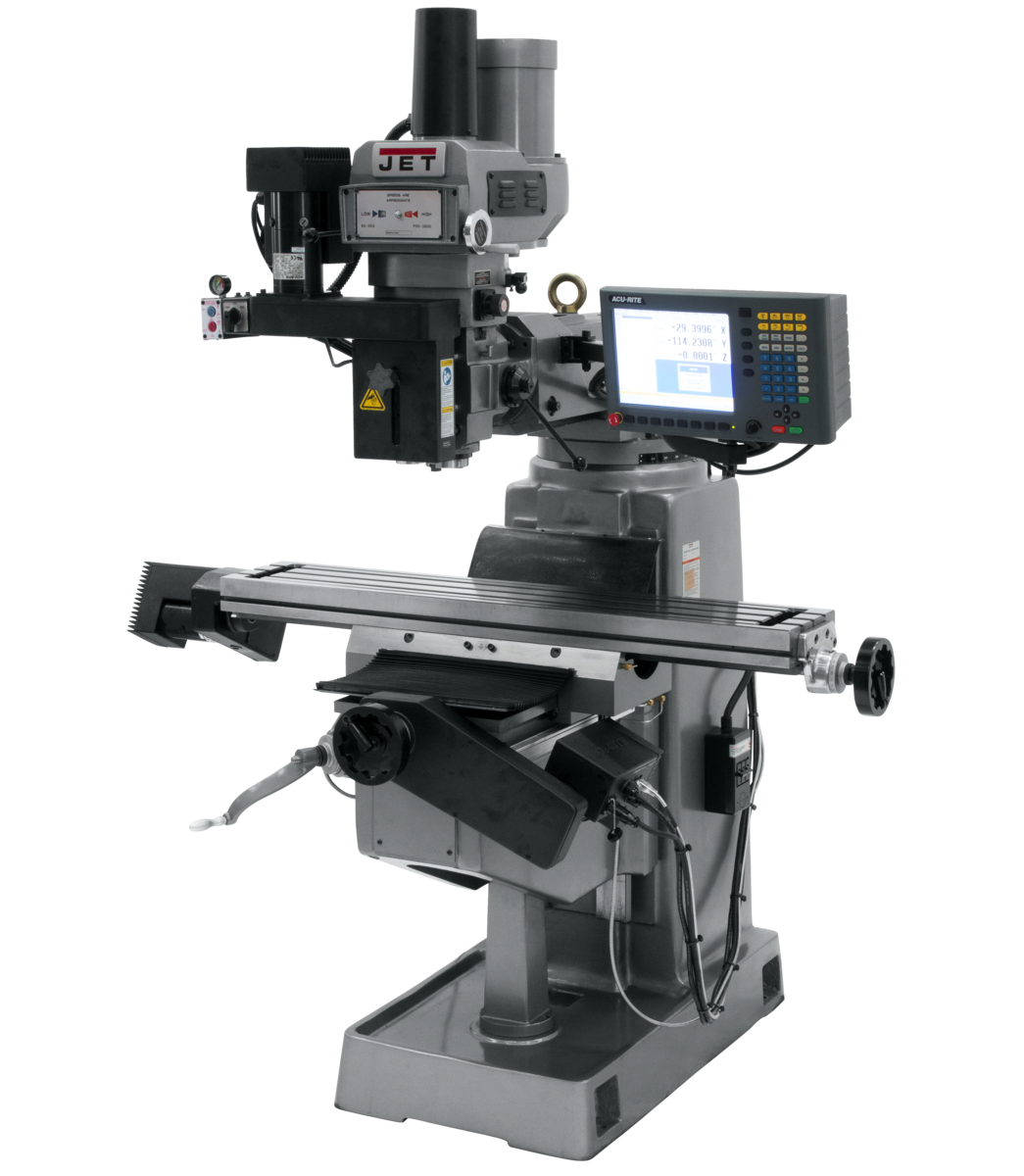

JTM-949EVS/230 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC

JTM-949EVS/230 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC

Product SKU: 690576

MSRP Price: $45129

Regular price $46,031.99 USD
Regular price $46,031.99 USD Sale price $46,031.99 USD
Sale Sold out

Free Shipping Available!

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time, while also providing an easier solution to leveling the machine. The inverter drive system and emergency stop located on a swing away control arm that moves all major functions within the operators reach. Our automatic lubrication cycles every 30 minutes with a flow of 3-6cc to reduce maintenance. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Stock Number 690576
Collet Capacity 1/8 - 7/8
Column Width (In.) 18
Distance Spindle to Column (Max.) (In.) 18-1/8
Inverter Type Delta, B
Max Distance Spindle to Table (In.) 20-3/4
Model Number JTM-949EVS/230
Motor (HP) 3HP, 230V, 3Ph
Number of Axis 3
Overall Dimensions (L x W x H) (In.) 67 x 64 x 86
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 60 - 4,500
Saddle Width (In.) 11-1/2
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) CNC
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 12-5/8
Table Longitudinal Travel (In.) 36
Table Longitudinal Travel With Powerfeed (In.) 30-3/4
Table Size (L x W) (In.) 9 x 49
Travel of Knee (In.) 15-3/4
Travel of Ram (In.) 15-1/4
Weight (Lbs.) 2420
Work Table Weight Capacity (Lbs.) 720
View full details

Jet - JTM-949EVS/230 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC

Product Details


- Adjustable gibs throughout
- Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
- Dual locks on all moveable surfaces
- Heavy-duty spindle brake
- Internal coolant tank built into casting base
- Precision bored and honed milling head
- Precision hardened and ground ways and table
- Quick spindle feed nut easily adjusts to different depths
- Three-stage power downfeed with automatic stop
- Two 115V outlets on electrical box for DRO or powerfeeds

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
