Jet

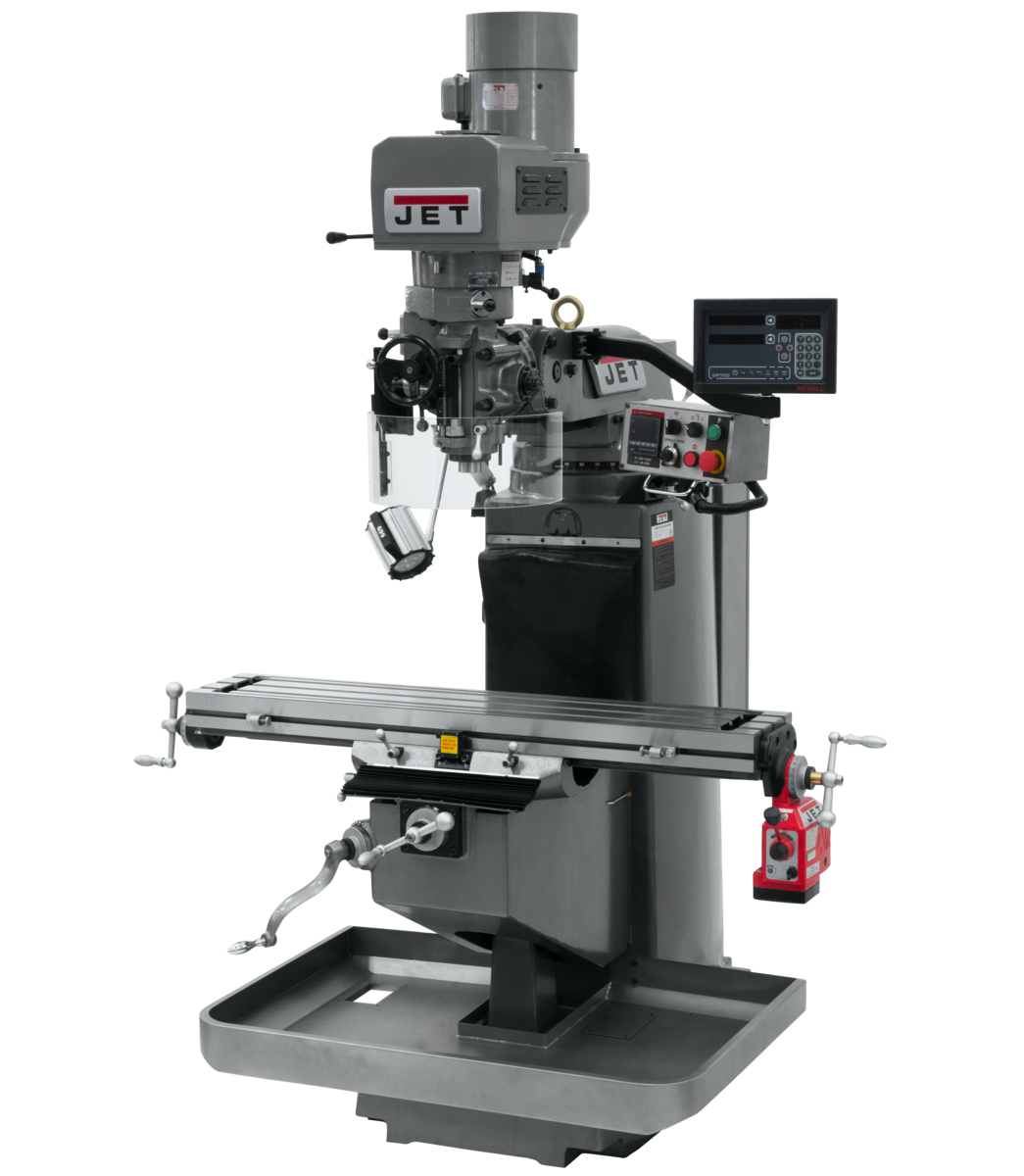

JTM-949EVS with Newall DP700 DRO & X Powerfeed

JTM-949EVS with Newall DP700 DRO & X Powerfeed

Product SKU: 690535

MSRP Price: $25121.43

Regular price $20,249.00 USD
Regular price $20,249.00 USD Sale price $20,249.00 USD
Sale Sold out

Free Shipping Available!

Constructed using the Certified Meehanite® casting process, The JTM-949EVS, 9" x 49" Electronic Variable Speed Milling Machines provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design. These new Mills have features you've come to expect and is backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.

Stock Number 690535
Collet Capacity 1/8 - 7/8
Column Width (In.) 18
Distance Spindle to Column (Max.) (In.) 18-1/8
Inverter Type Delta, B
Max Distance Spindle to Table (In.) 20-3/4
Model Number JTM-949EVS/230
Motor (HP) 3HP, 230V, 3Ph
Number of Axis 2
Overall Dimensions (L x W x H) (In.) 67 x 64 x 86
Powerfeed X-Axis
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 60 - 4,500
Saddle Width (In.) 11-1/2
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) EVS
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 12-5/8
Table Longitudinal Travel (In.) 36
Table Longitudinal Travel With Powerfeed (In.) 30-3/4
Table Size (L x W) (In.) 9 x 49
Travel of Knee (In.) 15-3/4
Travel of Ram (In.) 15-1/4
Weight (Lbs.) 2420
Work Table Weight Capacity (Lbs.) 720
View full details

Jet - JTM-949EVS with Newall DP700 DRO & X Powerfeed

Product Details

Features

- Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Dual locks on all moveable surfaces
- Spindle head is internally cooled extending bearing, belt and motor life
- Swing away control box houses an e-stop and puts all controls at the operators fingertips
- Swing away safety shield
- Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
