Jet

JVM-836-1W/AC 2-AX TPFA-2X&TPFA-2Y(TEXT)

JVM-836-1W/AC 2-AX TPFA-2X&TPFA-2Y(TEXT)

Product SKU: 690162

MSRP Price: $14819

Regular price $14,819.00 USD
Regular price $14,819.00 USD Sale price $14,819.00 USD
Sale Sold out

Free Shipping Available!

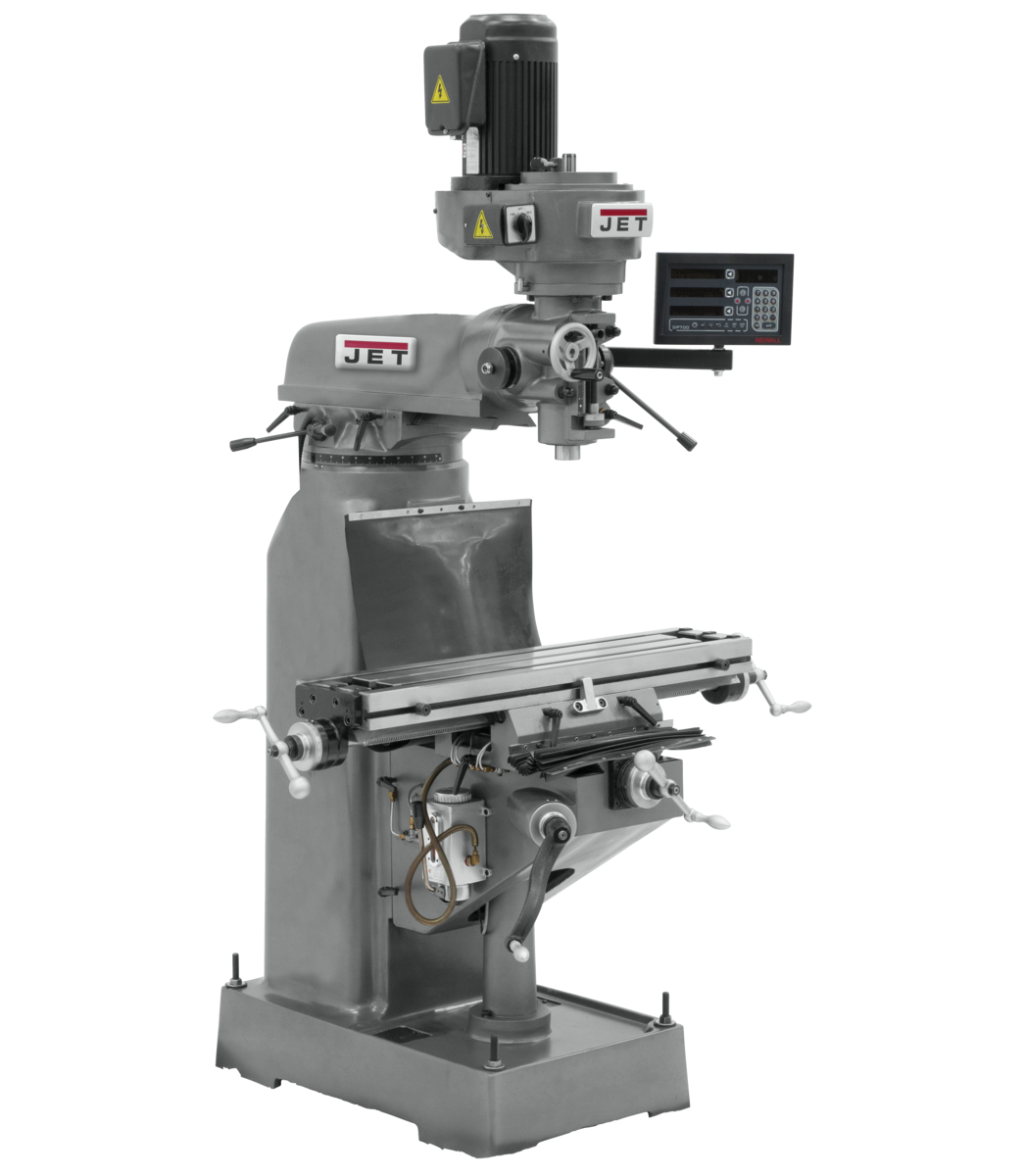

The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty

Stock Number 690162
Collet Capacity 1/8 - 7/8
Distance Spindle to Column (Max.) (In.) 15-3/4
Max Distance Spindle to Table (In.) 13-3/4
Model Number JVM-836-1
Motor (HP) 1-1/2 HP, 115/230V, 1Ph
Number of Axis 2
Number of Spindle Speeds 5
Overall Dimensions (L x W x H) (In.) 55 x 52 x 78
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 240 - 1,550
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) Step Pulley R8
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 9-1/2
Table Longitudinal Travel (In.) 22-1/4
Table Longitudinal Travel With Powerfeed (In.) 18
Table Size (L x W) (In.) 7-7/8 x 35-3/4
Travel of Knee (In.) 14
Travel of Ram (In.) 10-1/2
Weight (Lbs.) 1617
Work Table Weight Capacity (Lbs.) 500
View full details

Jet - JVM-836-1W/AC 2-AX TPFA-2X&TPFA-2Y(TEXT)

Product Details

Features

- Graduated scale on column
- Hardened and ground precision table
- Head tilts left or right
- High precision spindle bearings
- Large Diameter quill is chromed
- One shot lubrication system
- Precision bored and honed milling head
- Precision ground dovetail ways
-
-

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
