Jet

JWS-35X3-1, Shaper, 3HP 1PH 230V

JWS-35X3-1, Shaper, 3HP 1PH 230V

Product SKU: 708323

MSRP Price: $3499.99

$3,059.99 USD
$3,599.99 USD $3,059.99 USD
Sale Sold out

Free Shipping Available!

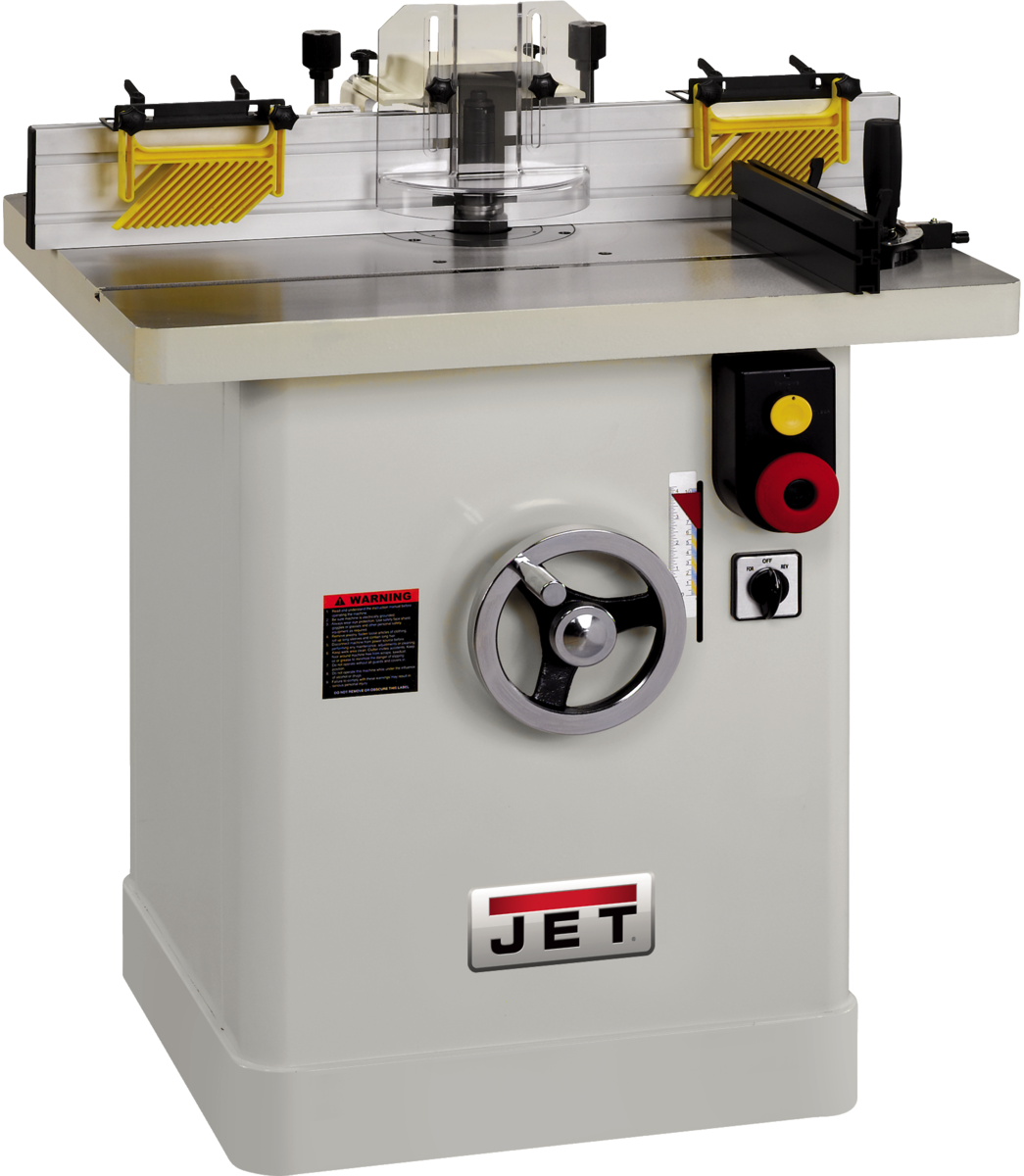

This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

Stock Number 708323
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 4
Maximum Spindle Diameter (In.) 1-1/4
Motor Amps 14
Motor Power (HP) 3
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Spindle Size Under Nut (In.) 4
Spindle Travel (In.) 4
Table Height from Floor (In.) 33-1/4
Table Inserts (In.) 2
Table Opening Diameter (In.) 6-19/64
Table Size (L x W) (In.) 32-1/4 x 26-3/4
View full details

Jet - JWS-35X3-1, Shaper, 3HP 1PH 230V

Product Details

Features

- 4" Dust port built into fence for convenient hookup to any dust collection system
- Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters
- Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder
- Poly-V-belt transfers maximum power to the spindle
- Powerful 3HP, 1Ph motor with magnetic controls
- Reversible spindle speeds for diverse shaping jobs
- Starting Pins for irregular shaping
- V-belt transfers maximum power to the spindle

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 5 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
