Jet

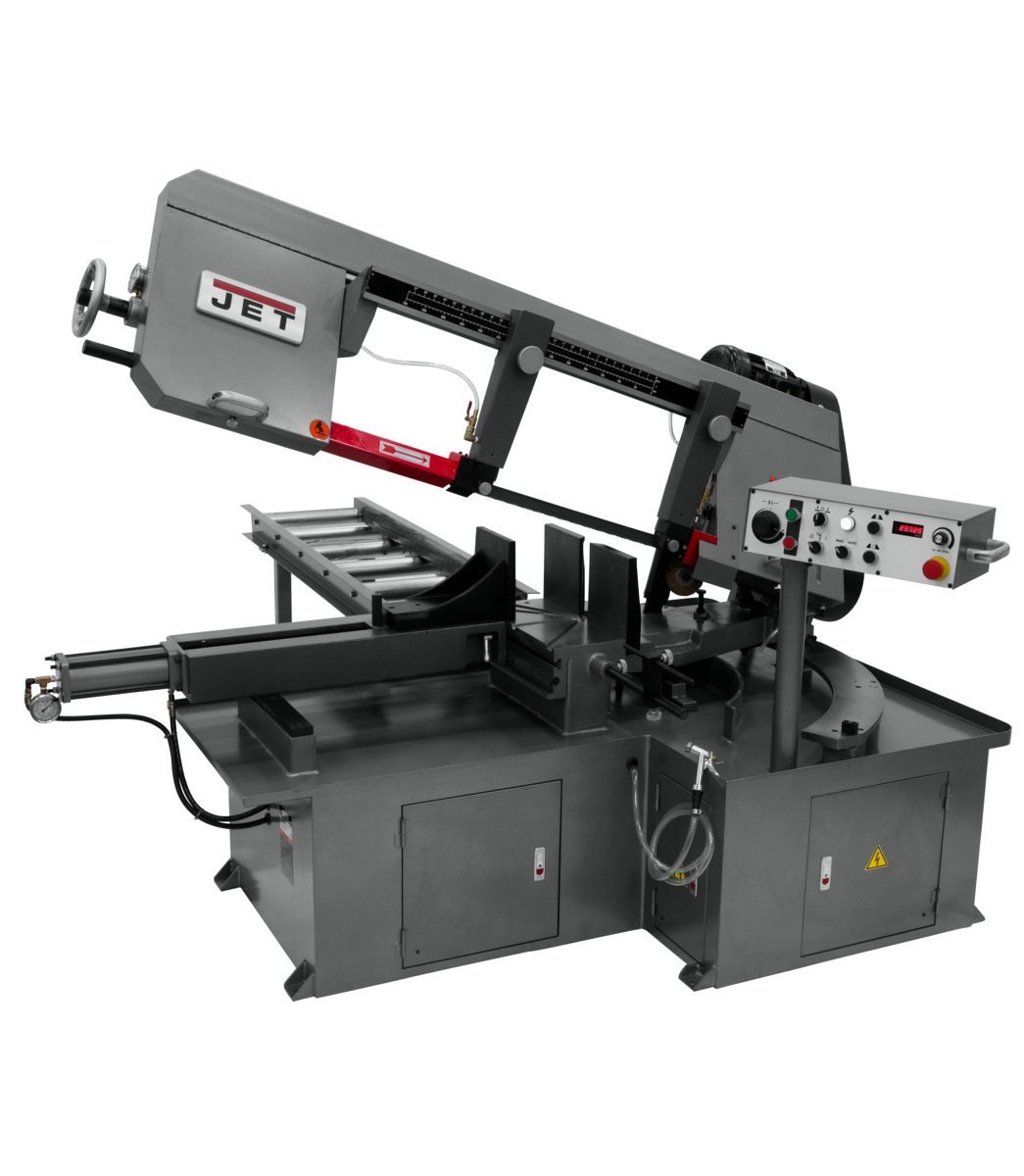

MBS-1323EVS-H 13 EVS Dual Miter 3HP, 230V

MBS-1323EVS-H 13 EVS Dual Miter 3HP, 230V

Product SKU: 413412

MSRP Price: $24404.29

Regular price $19,899.00 USD
Regular price $19,899.00 USD Sale price $19,899.00 USD
Sale Sold out

Free Shipping Available!

JET Dual Mitering Horizontal bandsaws' unique design head dual miters both left and right for quick angle cuts. The Frequency Inverter, unique to this saw, allows this EVS saw a full range of blade speeds. The saw comes with an automatic blade breakage sensor that detects accidental breakage and interrupts the power as well as an automatic shut off switch to stop the sawing process. To ensure operator safety, the blade is fully guarded.

Stock Number 413412
Bed Height (In.) 27.75
Blade Wheel Diameter (In.) 16
Drive EVS
Model Number MBS-1323EVS-H
Motor (HP) 3 HP, 230V, 3-Phase
Net Weight (Lbs.) 2090
Overall Dimensions (L x W x H) (In.) 88 x 55 x 51
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Rectangle at 90 Degrees (In.) 12 x 23-1/2
Round at 45 Degrees (In.) 13
Round at 60 Degrees (In.) 11
Round at 90 Degrees (In.) 13
Weight (Lbs.) 2090
View full details

Jet - MBS-1323EVS-H 13 EVS Dual Miter 3HP, 230V

Product Details

Features

- Adjustable Material Stop
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Built-in, self-propelled blade brush prevents chip build up in blade guides
- Heavy Duty construction
- Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
- Hydraulic Vise for rapid clamping of material on 13" saw
- Integrated pressurized wash hose for easy machine clean up
- Magnetic starter for low voltage and lost phase protection
- Semi-automatic bow raises after cut to predetermined height
-

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
