C&M Topline

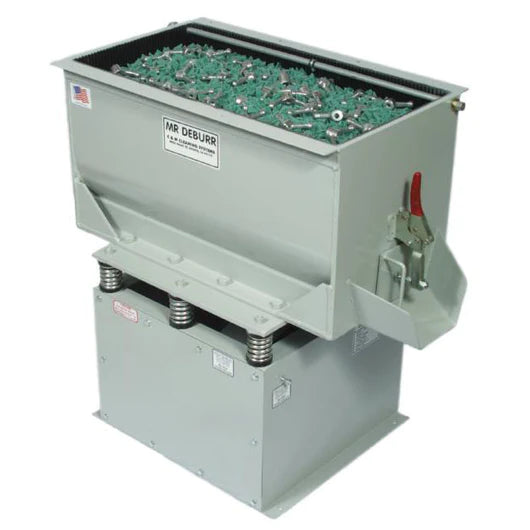

Mr. Deburr 600DB (6.5 Cubic Foot)

Mr. Deburr 600DB (6.5 Cubic Foot)

Free Shipping Available!

NOTE: Additional $45 S&H Fee for each Media Kit variant

MSRP Price: $6641.0

Regular price $6,627.20 USD
Regular price $6,498.00 USD Sale price $6,627.20 USD
Sale Sold out
Motor
Include Media & Compound Starter Kit
Include Magnetic Motor Starter
View full details

Features:

  • Constructed of heavy gage steel for long life
  • Tanks lined with high quality Uniroyal polyurethane that is oven cured (Our tank liners have been known to last 20+ years)
  • 5-inch round discharge door that is held in place with a quick release clamp for easy parts separation or media changes
  • Included with purchase is a complete fluid system, sound reduction lid and anchor bolts
  • Available in all foreign voltages and hertz. We install motors that are designed to run these voltages without the use of converters
  • Simple reliable design will give years of trouble free service
  • All parts are line replaceable and available from C&M Topline
  • Made in the USA
  • One (1) year warranty included

Optional Media and Compound Starter Kits Available with Machine Purchase Only :

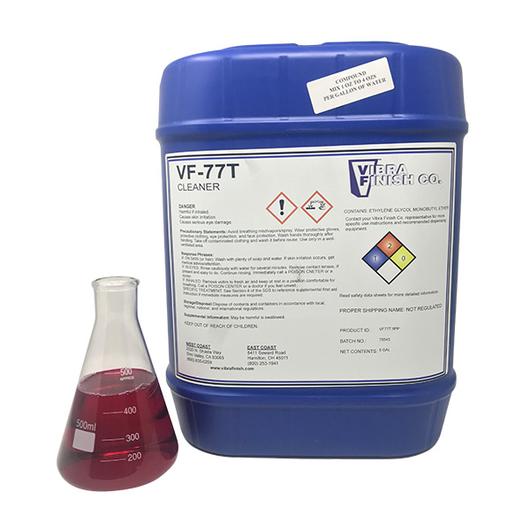

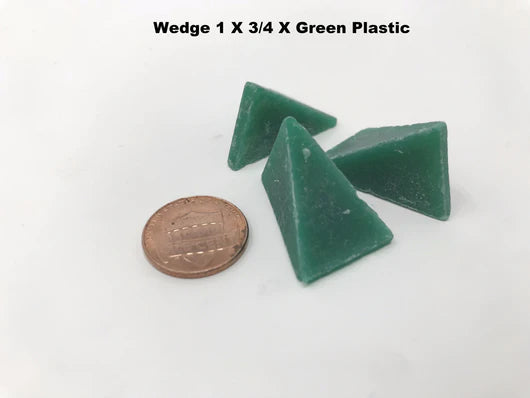

  • $813.00: 300 pounds of Wedge 1 X 3/4 X Plastic or Similar Equivalent (due to stock availability) and 5 gallons of VF77T compound for processing aluminum and other softer metals

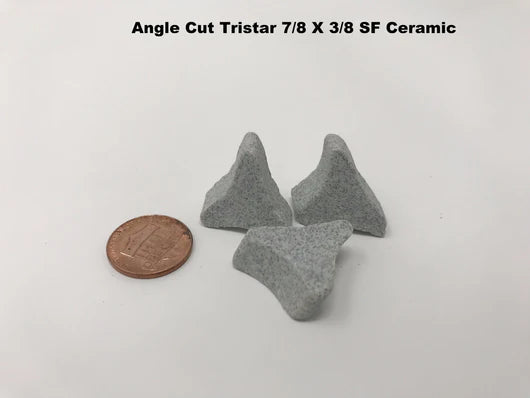

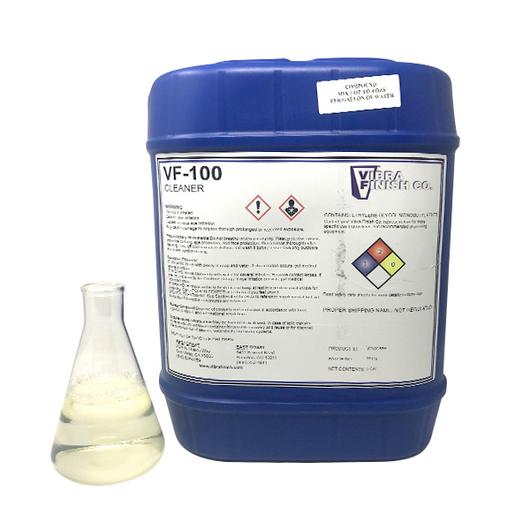

  • $813.00: 400 pounds of Angle Cut Tristar 7/8 X 3/8 SF  Ceramic or Similar Equivalent and 5 gallons of VF100 compound for processing steel and other hard metals

Important Shipping Information:

  • 770 pound shipping weight (machine only)
  • Ships via LTL (Less than Truck Load) truck freight on a pallet
  • A commercial delivery address with forklift or loading dock access is preferred
  • We reserve the right to adjust your shipping charge depending on the delivery address and availability of a forklift or loading dock as additional charges may apply
  • If you select shipping collect on your account be aware that shipping rates vary widely by carrier and the rate schedule you have negotiated with your carrier. Small package UPS and Fedex accounts are not usualy Freight LTL accounts

Product Specifications

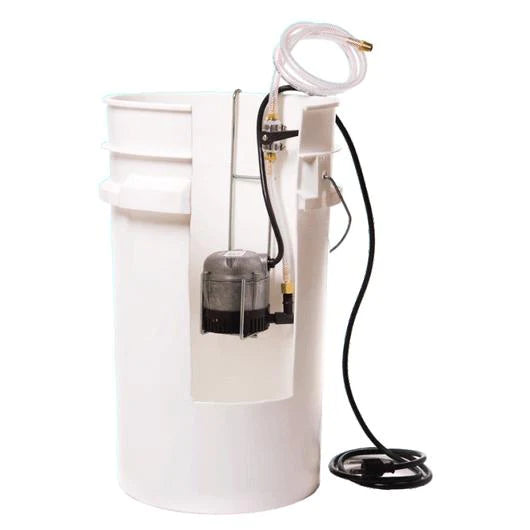

Fluid System

V102 Included

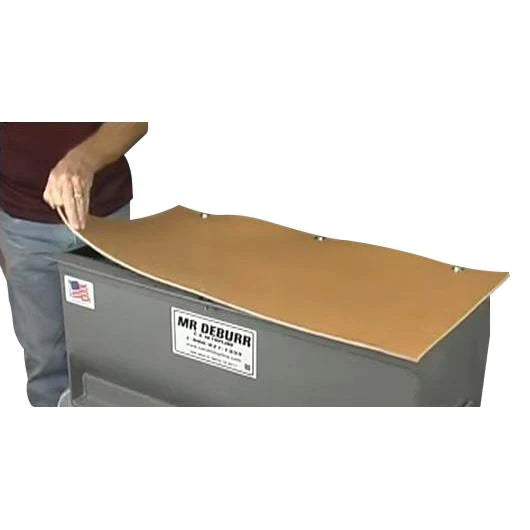

Sound Reduction

Lid Included

Max Length (in.)

46

Max Width (in.)

29

Max Height (in)

44

Footprint (in.)

28 X 25

Anchor Type

Anchor Bolts, 3/8, included  (must be mounted to concrete floor)

Total Volume (cu. ft.)

6.5

Inside Tank Width (in.)

18

Inside Tank Length (in.)

35

Inside Tank Depth (in.)

18.75

Max Part Length (in)

34

Media Load (Plastic/Ceramic)

300/400

Tank Liner Specifications

1/2 to 5/8 inch, 80 durometer uniroyal polyurethane

Approx. Part Load (lbs)

300

Shipping Weight (lbs)

740

Approx. Noise Level (dB) 80

Motor Horse Power, Standard

3HP, 3 Phase

Voltage (US/International)

230V or 440V, 60Hz / 220V, 50Hz (installation of manual disconnect or magnetic starter required, not included with base purchase)
Motor Starter Available Here
Motor Wiring Diagram

Operating Manual Download Here
Engineering Schematic Download Here


Product Specifications

C&M Topline - Mr. Deburr 600DB (6.5 Cubic Foot)

Click Here for Product Manual

SKU:
C&M Topline is an industry leader in vibratory finishing and deburring, manufacturing quality and affordable vibratory finishing equipment in the USA since 1972.
