Powermatic

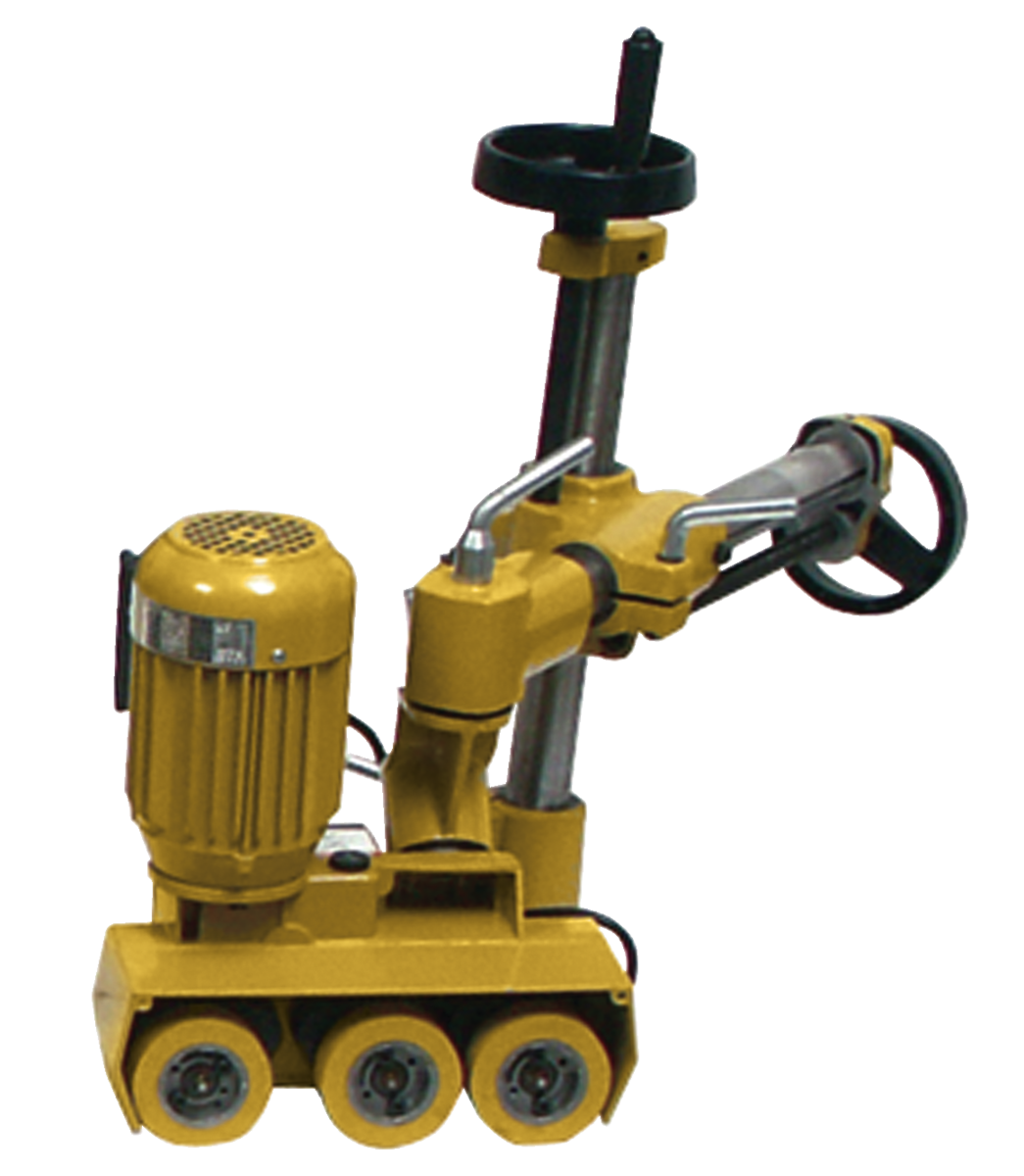

PF3-JR Power Feeder, 1/4HP 1PH 115V, 4-Speed, 3 Wheel
PF3-JR Power Feeder, 1/4HP 1PH 115V, 4-Speed, 3 Wheel
Product SKU: 1790818
MSRP Price: $999.99
Free Shipping on All Orders Over $1500!
Couldn't load pickup availability
This rugged, heavy-duty Stock Feeder features a continuous-duty motor that transfers power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support column features moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of body, base and universal joints provides stability with vibration-free feeding. The roller system provides money-saving wheel changes by allowing the replacement of a single roller, instead of a complete set.
SPECIFICATIONS:
| Stock Number | PM9-1790818 |
|---|---|
| Feed Rate (FPM) | 13/26/33/62 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 6 |
| Model Number | PF3-JR |
| Motor Phase | 1 |
| Motor Power (HP) | 1/4 |
| Motor Voltage (V.) | 115 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Swing (Deg.) | 360 |
| Warranty | 5 Year |
| Gross Weight | 71.0 |
| Net weight | 71.0 |
Powermatic - PF3-JR Power Feeder, 1/4HP 1PH 115V, 4-Speed, 3 Wheel
Product Details
Features
Continuous duty motors transfer power from the gear box to the feed roller
Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
Roller chain and sprocket design provide positive feeding for all types of materials
Shipping Details
Shipping Type:
Warranty & Legal
Warranty: 5 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
