Powermatic

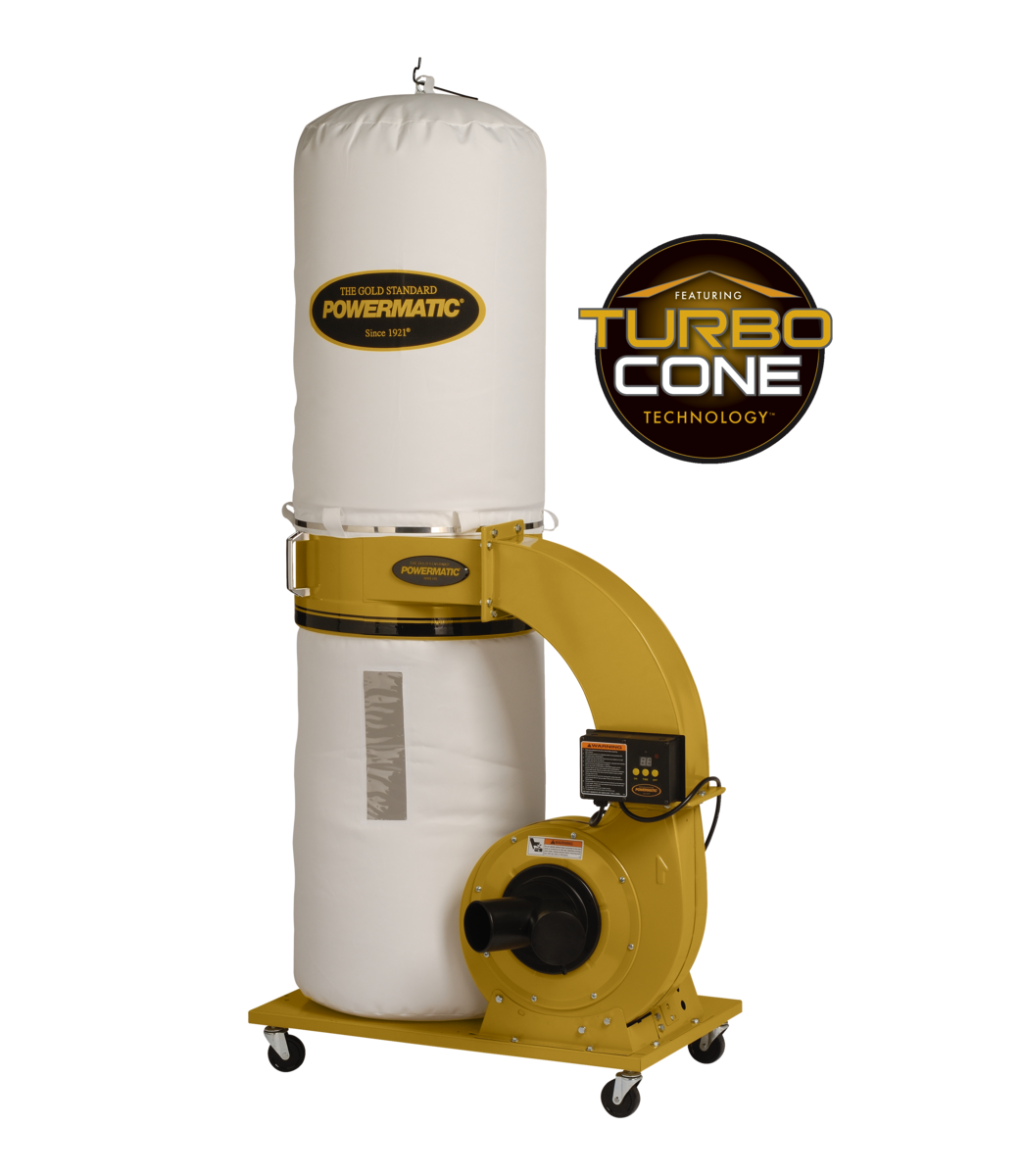

PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit
PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit
Product SKU: 1791078K
MSRP Price: $949.99
Free Shipping on All Orders Over $1500!
Couldn't load pickup availability
The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
SPECIFICATIONS:
| Stock Number | PM9-1791078K |
|---|---|
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Bag Diameter (In.) | 20 |
| Collection Bag Length (In.) | 30 |
| Efficiency (Micron) | 30 |
| Filter Bag/Canister Length (In.) | 48 |
| Gross Weight (Lbs) | 150 |
| Impeller Diameter (In.) | 12 |
| Impeller Fins | 6 |
| Impeller Material | Steel |
| Model Number | PM1300TX-BK |
| Motor Amps | 18/9 |
| Motor Phase | 1 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115/230 |
| Overall Dimensions (L x W x H) (In.) | 37 x 29 x 79 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Rating (Db.) | 75-90 |
| Static Pressure (Wc.) | 11.31 |
| Style (Type) | Dust Collector |
| Warranty | 5 Year |
| Gross Weight | 144.0 |
| Net weight | 127.0 |
Powermatic - PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit
Product Details
Features
All-metal duct construction for rigidity and improved air flow
Cloth collection bag with view window uses snap ring for rapid installation/removal
Dual 4" dust ports for simultaneous collection from two machines
Shipping Details
Shipping Type:
Warranty & Legal
Warranty: 5 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
