Powermatic
PWBS-14CS, 14" Bandsaw, 1.5HP 1PH 115/230V
PWBS-14CS, 14" Bandsaw, 1.5HP 1PH 115/230V
Product SKU: 1791216K
MSRP Price: $1699.99
Free Shipping Available!
Couldn't load pickup availability

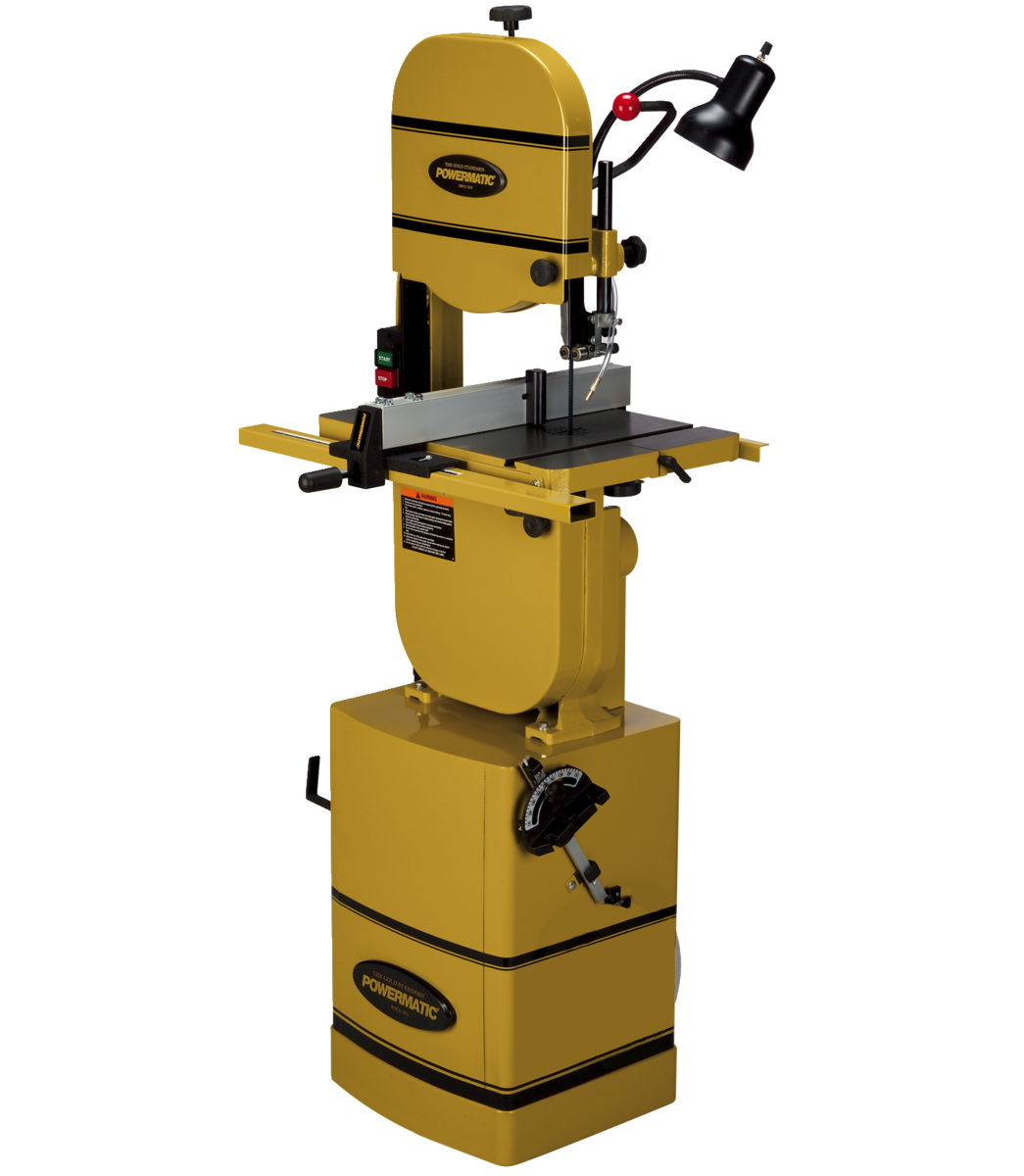

Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
SPECICFATIONS:
| Stock Number | PM9-1791216K |
|---|---|
| Model Number | PWBS-14CS |
| Warranty | 5 Year |
| Band Saw Size/Wheel Diameter (In.) | 14 |
| Blade Length (In.) | 93-1/2 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Blade Speed (SFPM) | 3000 |
| Dust Port Outside Diameter (In.) | 4 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
| Motor Power (HP) | 1.5 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Recommended Circuit Size (Amps.) | 30/20 |
| Table Height from Floor (In.) | 44 |
| Prop 65 | None |
| Net weight | 250.0 |
| Gross Weight | 266.0 |
Powermatic - PWBS-14CS, 14" Bandsaw, 1.5HP 1PH 115/230V
Product Details
Features
Carter™ quick tension lever speeds blade changes and the detension setting extends blade life during non-use
Chip blower ensures a clean, visible cut line
Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 5 Year
Prop 65 (CA Only): N/A
