Jet

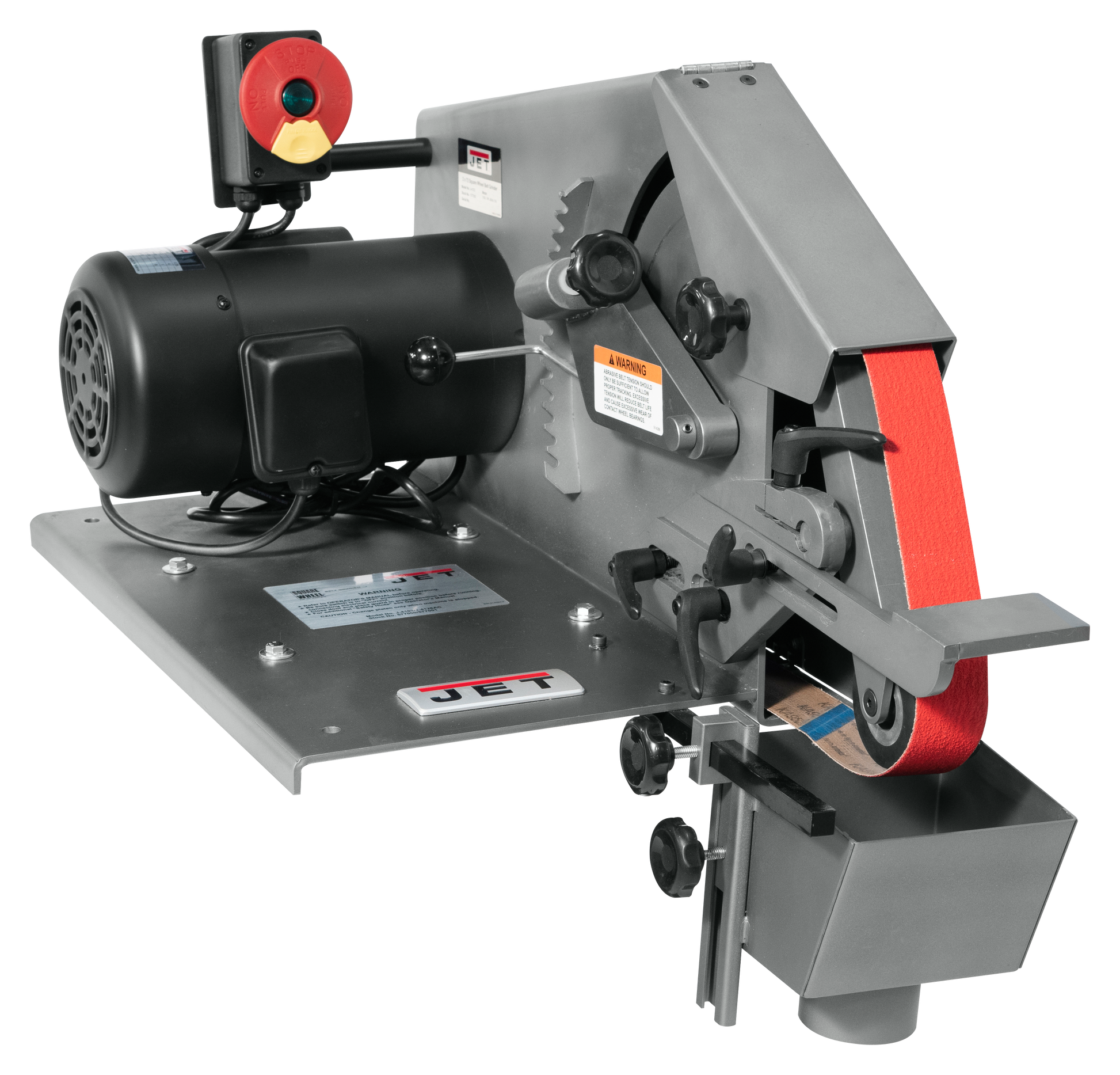

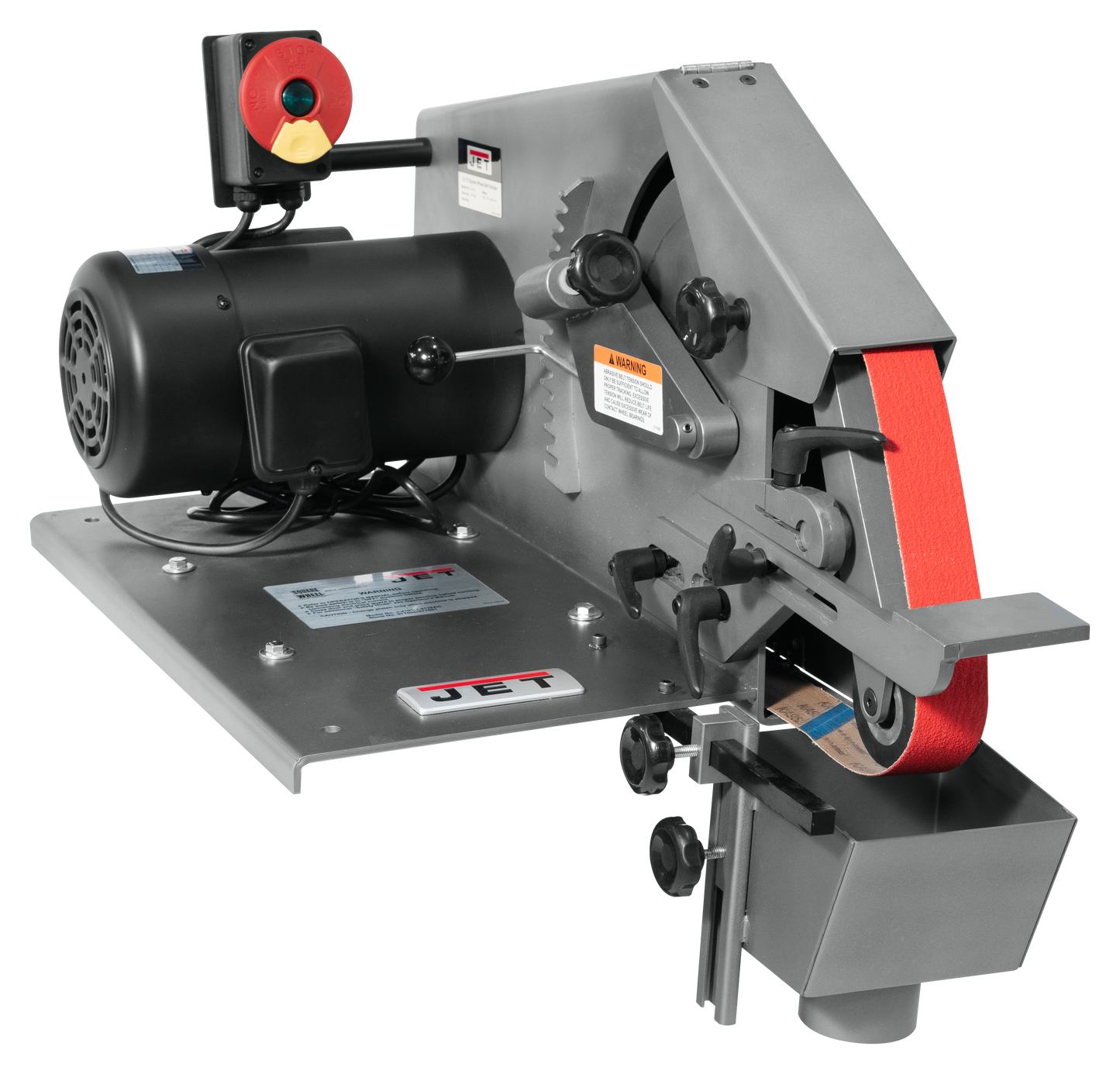

SWG-272, 2 x 72 Square Wheel Belt Grinder 115V 1Ph

SWG-272, 2 x 72 Square Wheel Belt Grinder 115V 1Ph

Product SKU: 577400

MSRP Price: $2511.43

Regular price $1,999.00 USD
Regular price $1,999.00 USD Sale price $1,999.00 USD
Sale Sold out

Free Shipping Available!

The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Grinder will grind, deburr and chamfer with equal proficiency both internal/external on parts. large or small. We have added a dust port to help keep your shop clean and sparks and debris away from the operator.

Stock Number 577400
Belt Size (W x L) (In.) 2 x 72
Belt Speed (SFPM) 4600
Gross Weight (Lbs) 162
Model Number SWG-272
Motor (HP) 1 HP, 115/230V, 1Ph
Net Weight (Lbs.) 126
Overall Dimensions (L x W x H) (In.) 35-7/16 x 17 x 21-1/4
Prop 65 Cancer and Reproductive Harm
Contact Wheel Durometer 90
Drive Wheel (in.) 10
Serrated Contact Wheel Diameter (In.) 8
Enhanced Bullet 4 ADDED SAFETY: Fully guarded on all grinding surfaces.
View full details

Jet - SWG-272, 2 x 72 Square Wheel Belt Grinder 115V 1Ph

Product Details

Features

- Adjustable Dust port with high dust collection efficiency and drive sparks away from the Operator
- Aluminum casted drive wheel for years of use
- Flat and Angular Stock: Platen setting is the perfect angle for high speed, precision flat and level grinding
- Fully guarded on all grinding surfaces
- Steel frame and platen provides heavy duty construction
- Strong cast iron head casting
- Toggle on/off switch with safety cover
-
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
