Jet

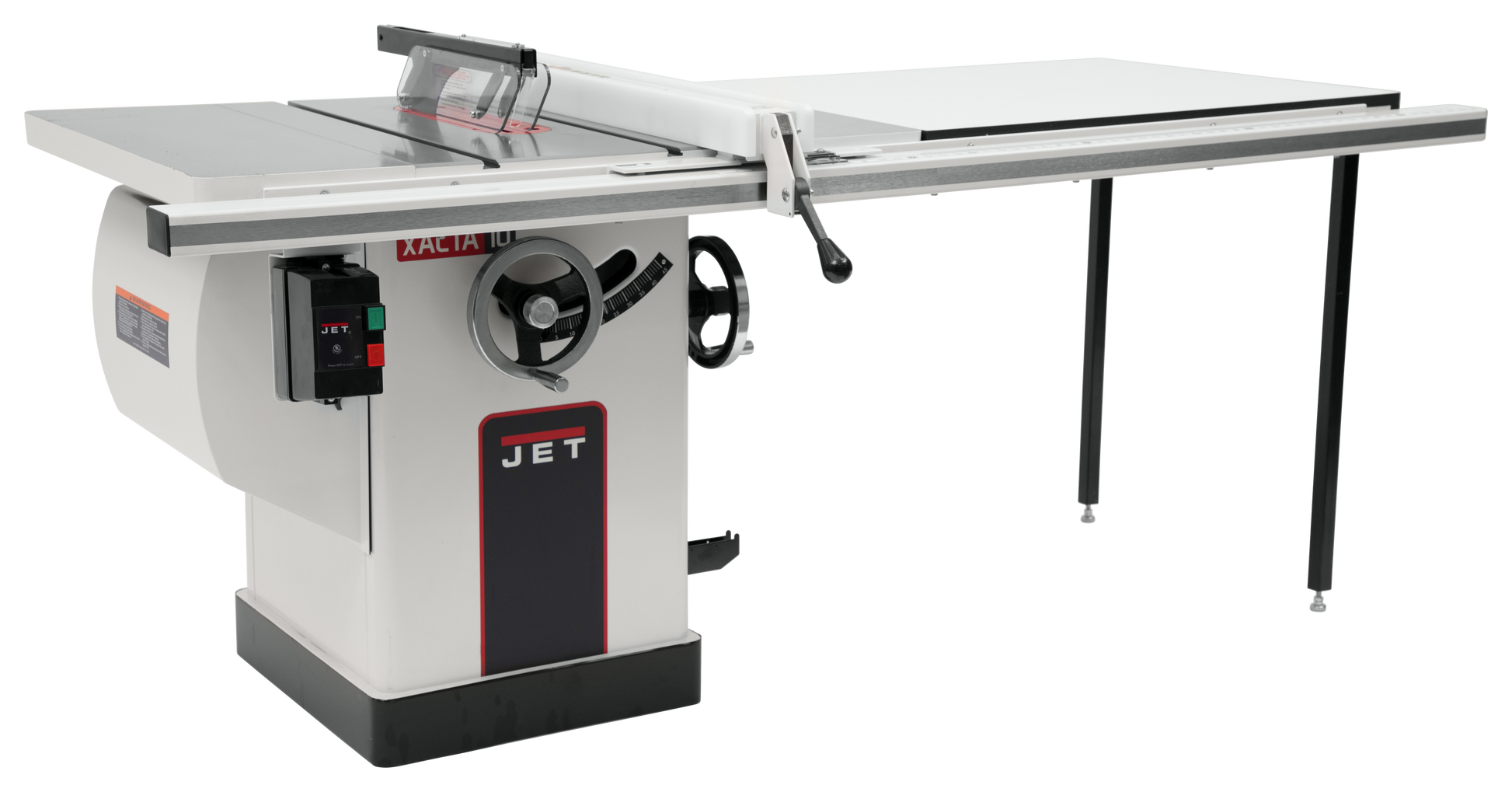

XACTA Saw Deluxe 5HP 1Ph 230V, 50" Fence System
XACTA Saw Deluxe 5HP 1Ph 230V, 50" Fence System
Product SKU: 708677PK
MSRP Price: $3849.99
Free Shipping Available!
Couldn't load pickup availability
If you've ever wondered about what a table saw can really do, look no further. Introducing the JET® 10" Deluxe XACTA® saw. The quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The Deluxe XACTA® saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4" storage drawer sealed from the cabinet keeps your necessities within arms reach, and also includes an on-board fence and miter gauge storage.
| Stock Number | 708677PK |
|---|---|
| Blade Diameter (In.) | 10 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Right of Blade (In.) | 50 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | Deluxe |
| Motor Amps | 18 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Cabinet |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
| Table Size (L x W) (In.) | 29 x 20 |
| Table Type | Cast Iron |
Jet - XACTA Saw Deluxe 5HP 1Ph 230V, 50" Fence System
Product Details
Features
-
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Hinged motor cover on cabinet gives quick access to the motor and belts
- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 5 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
